Software related

how to change the default settings for the official material

Description

With the natural aging of the laser tube, the power of the laser tube will decrease, which will lead to the official material can’t be cut through or engraved with the same effect as previously with the default settings. In this case, need to adjust the settings like increase the power value or decrease the speed value. Once figured out the best settings after several tests, you can change the default settings for the official material refer to steps below.

Operation steps

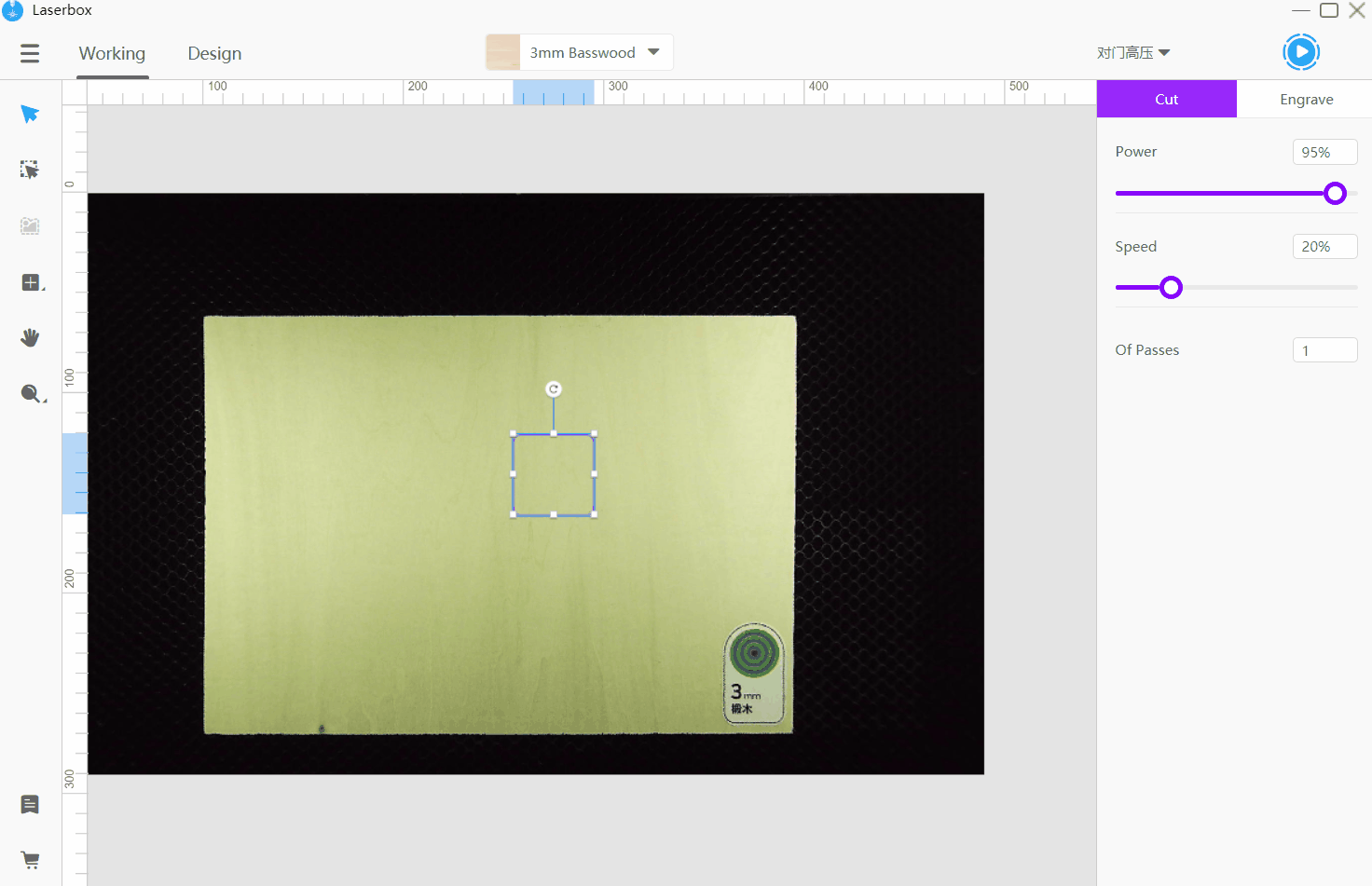

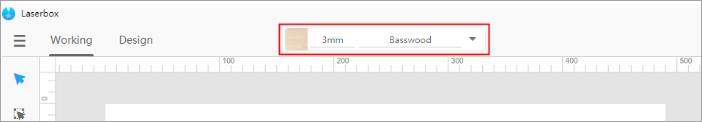

Step 1: Open the Laserbox software and enter a new project page, then you will see the material selecting list on the top.

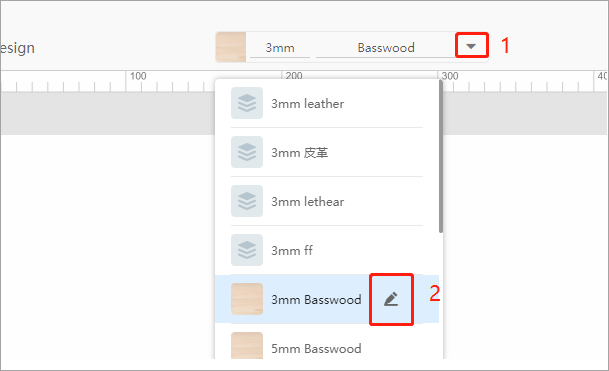

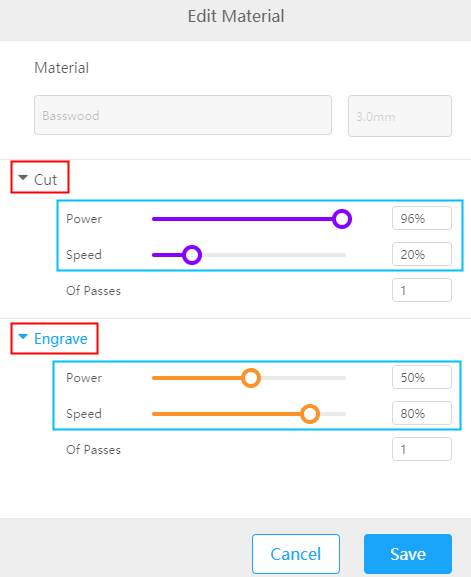

Step 2: Click the triangle icon and click the edit icon for the particular material you want to modify the settings. Here I take 3mm Basswood as example:

Step 3: Set appropriate parameters (power and speed) under engraving and cutting area respectively.

Step 4: Connect Laserbox to your computer and go to Menu > Settings > General, and click Update in the Parameter Update dialog box.

Description of Parameter Update

Laserbox boasts multiple offline features, which empower it to identify Makeblock materials and set parameters when the laser cutter is offline. Parameter Update synchronizes the material list and processing parameters in the software into Laserbox, allowing the laser cutter to apply new parameter settings when used offline.

How to fix the dimension while import the DXF drawing from Adobe Illustrator to Laserbox software

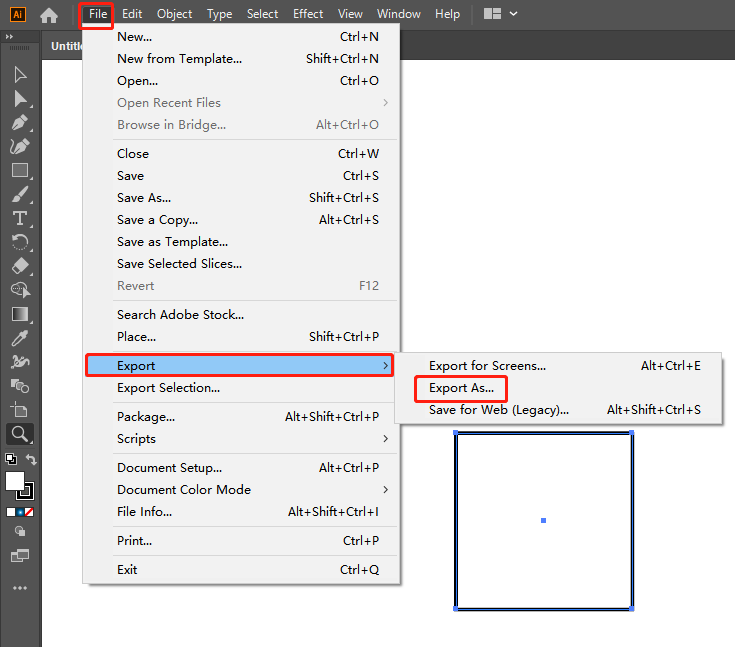

Step 1: Select the file which you want to import to Laserbox software in Adobe Illustrator, and go to File > Export > Export As to set scaling size.

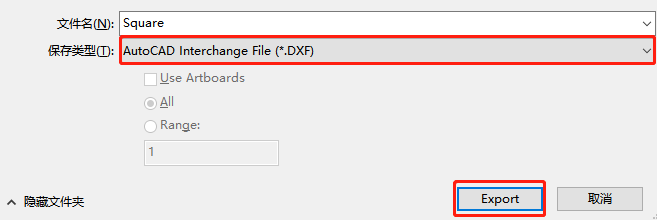

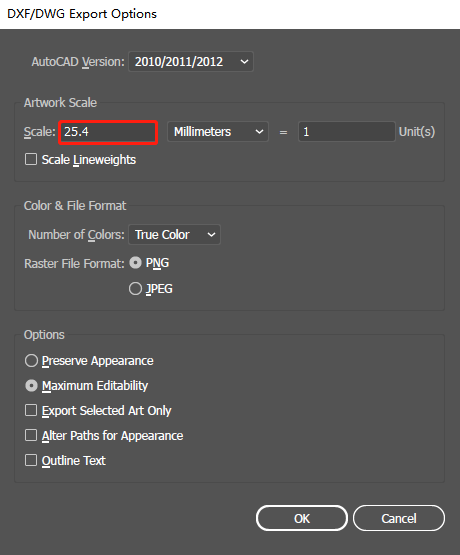

Step 2: After pop-up below frame then select DXF format and click Export to set scaling size to 25.4 mm for the drawing.

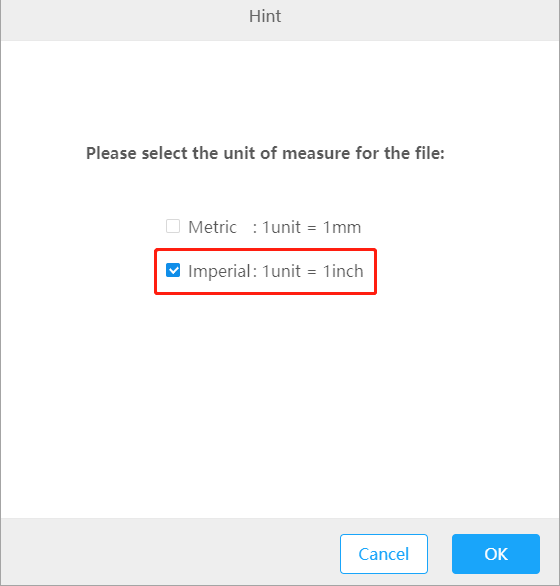

Step 3: Check the Imperial: 1unit = 1inch checkbox while you import the file to Laserbox software, then your file will be same size as your its original dimension.

Hardware related

How to switch the high and low voltage of the laser power (110V/220V)

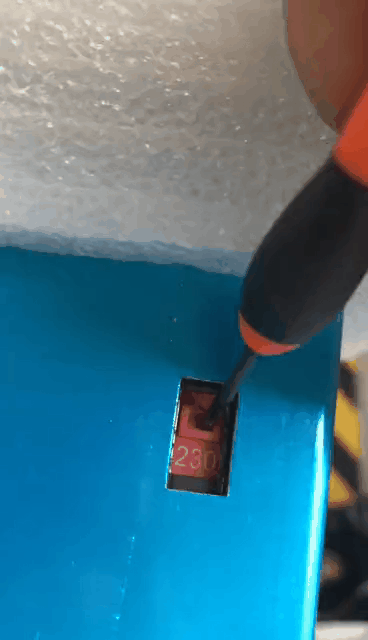

The high and low voltage modes can be switched by adjusting the fluctuation key of the laser power, please refer to the following animation (The number 115 represents 110V voltage, 230 represents 220V voltage.)

Note: the switch must be pulled to the correct power according to the local power, otherwise, it may cause damage on laser power or mainboard. Normally, there is no need to switch it since the machine was switched to correct power before sending out to corresponding country.

How to upgrade firmware for laserbox with SD card

Note: The firmware version 019 is taken as example here.

Step1: Download and save the firmware "Laserbox_H3_firmware_40.02.019.00" on the computer. Download and save the software tool "Diskmager" on the computer.

Step 2: Insert the SD card to the card reader.

Step 3: Plug the card reader to the computer.

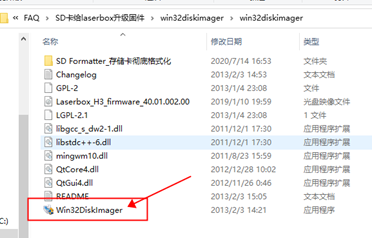

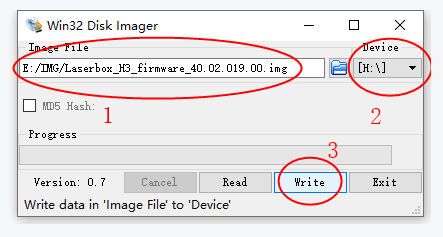

Step 4: Open the software tool "diskimager", then write the firmware according to the picture guides below.

After the firmware was written to the SD card successfully, please follow the steps below to upgrade the firmware:

1. Insert the SD card into the Laserbox.

2. Close the cover and power on the Laserbox machine.

3. Wait for 10 minutes, the firmware will upgrade automatically.

4. Power off the machine.

5. Take out the SD card and assemble the parts on Laserbox.
