    Case 3 - Change mBot2 Rover's emotion

    Avatar
    Makeblock Customer Service Team

    Part 1 Objective

    After uploading the program, you can change mBot2 Rover's emotion using buttons 1, 2, 3, and 4 on the Bluetooth controller.


    Part 2 Preparation

    • Assembled mBot2 Rover × 1
    • Bluetooth Controller × 1
    • USB cable (Type-C) × 1
    • Computer with network access × 1

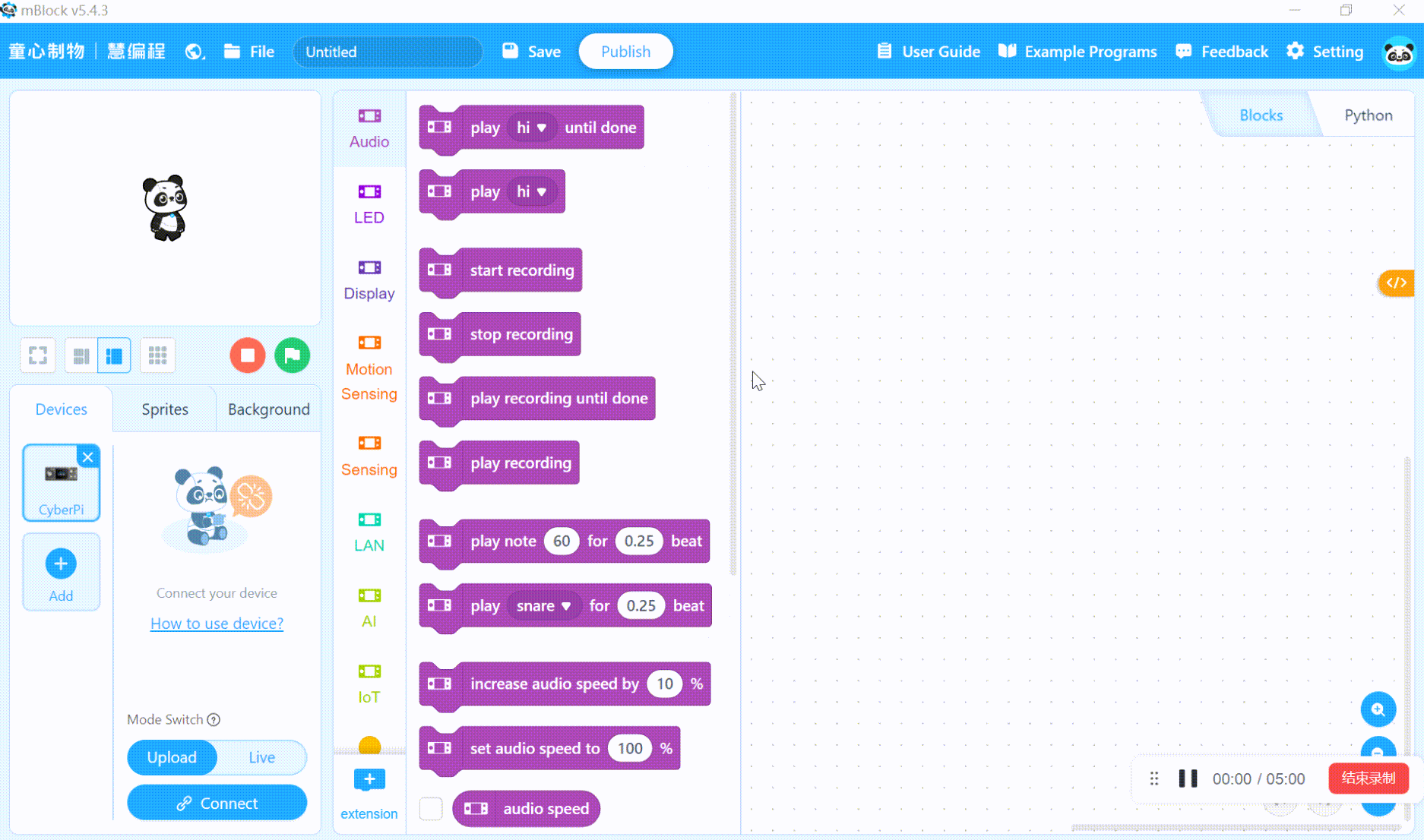

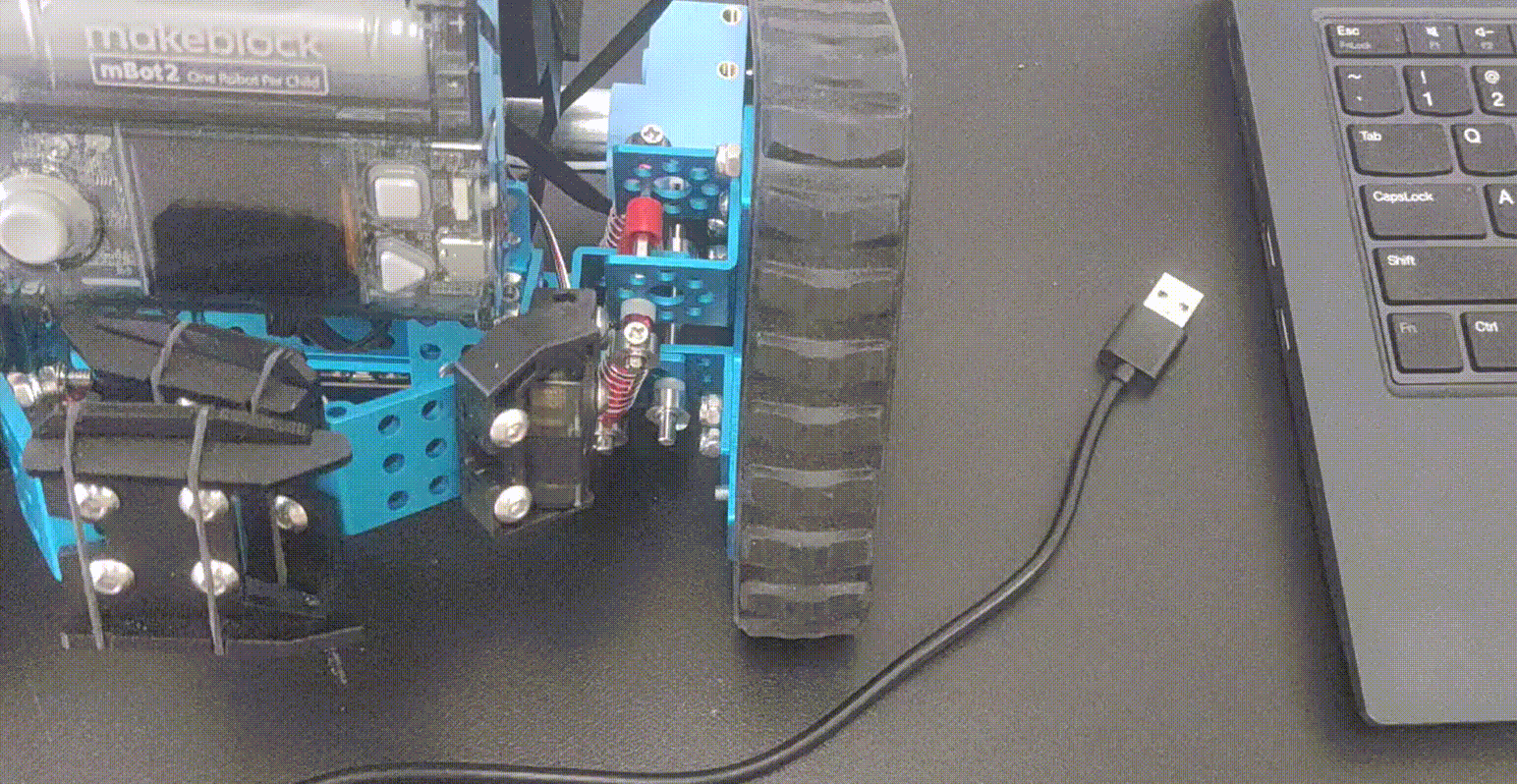

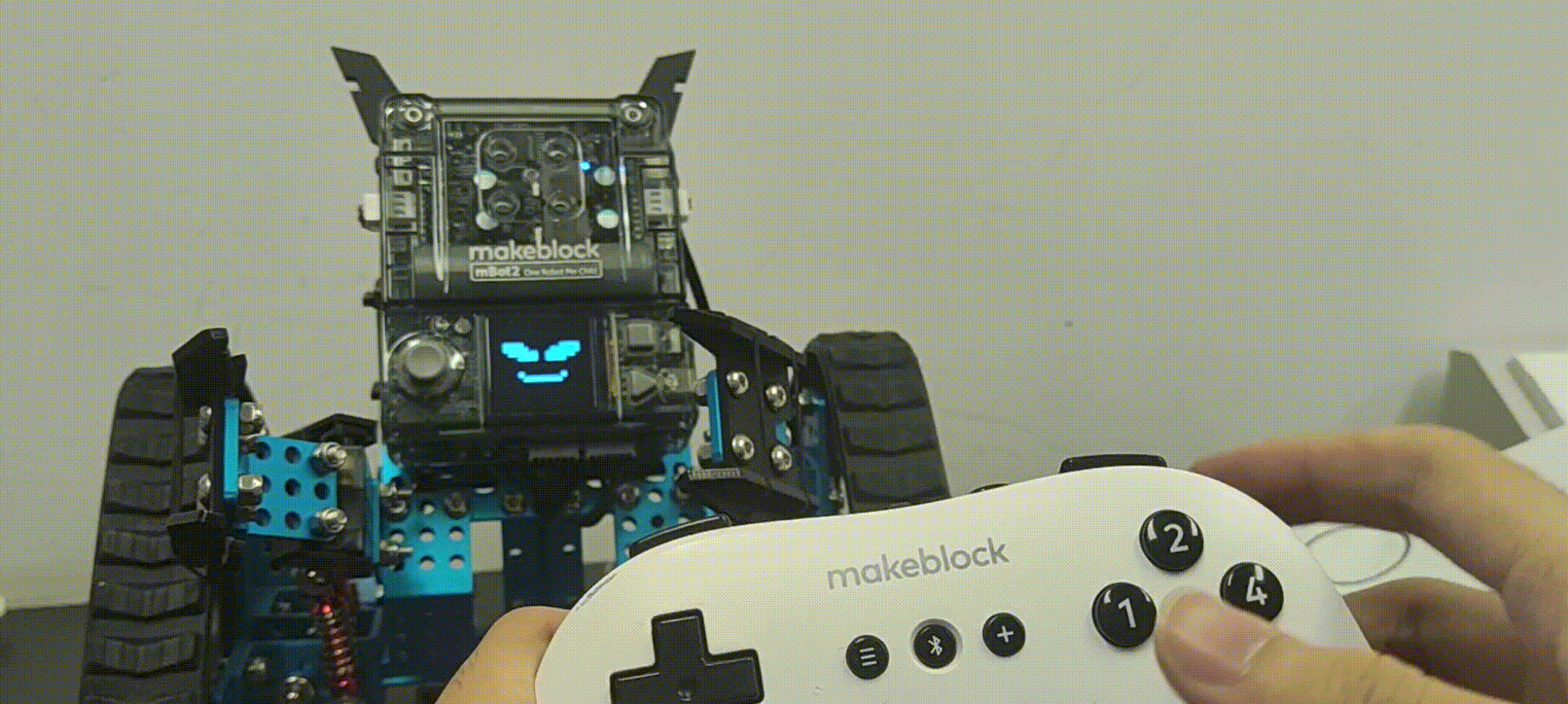

    Turn on mBot2 Rover and connect it to the computer by using the cable. Open mBlock 5 (PC client or web version), connect CyberPi, and select the Upload mode. Turn on the Bluetooth controller, and connect it to mBot2 Rover by pressing the Bluetooth button. mBot2 Rover beeps once the Bluetooth connection is established.




    Part 3 Programming

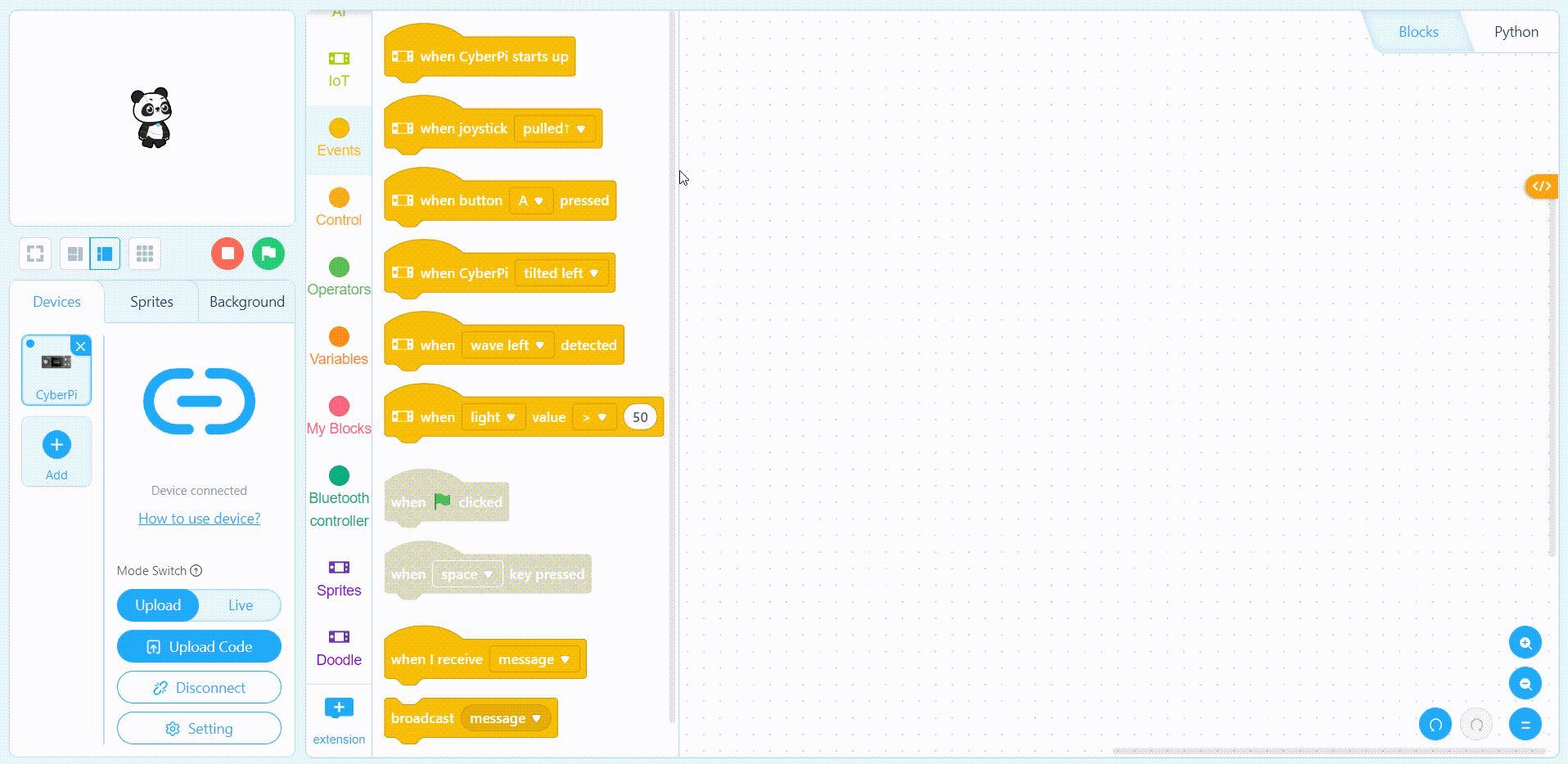

    Click + extension on mBlock 5, and add Display+ and Bluetooth controller.

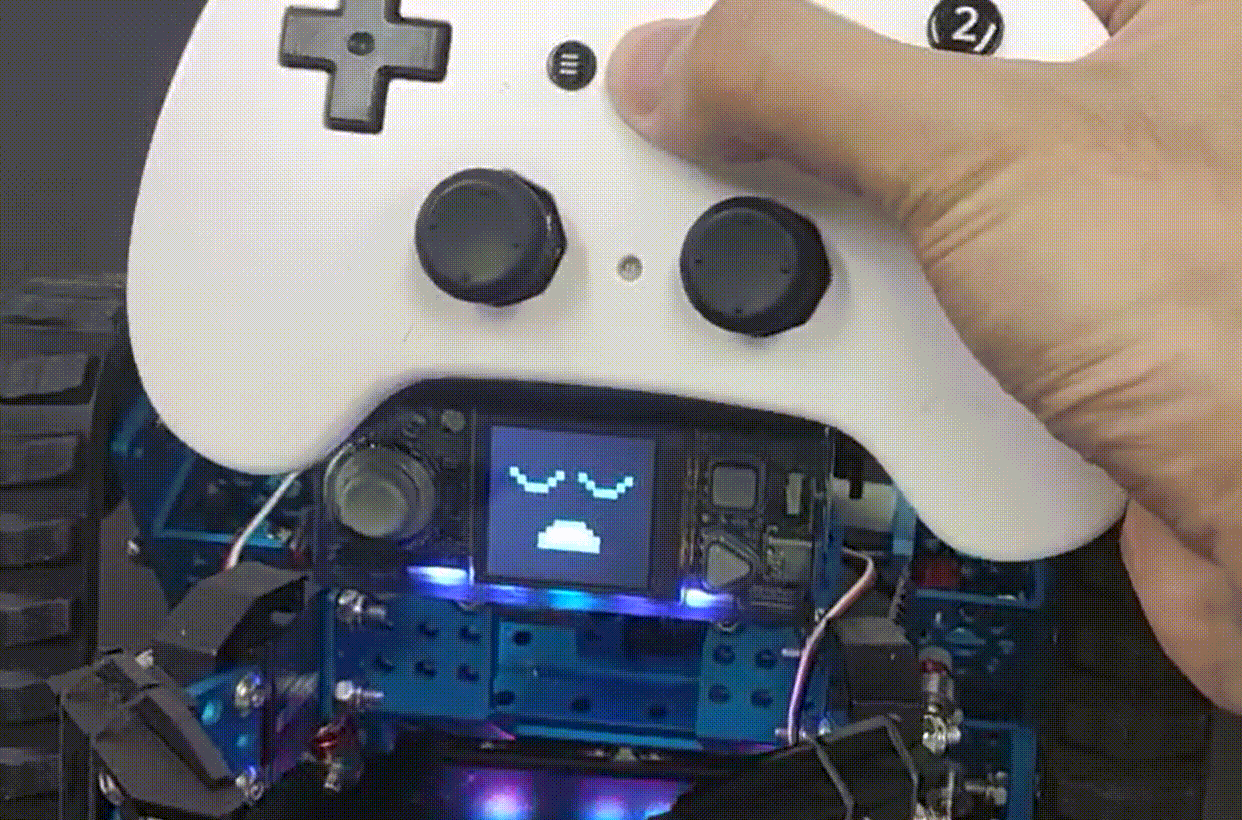

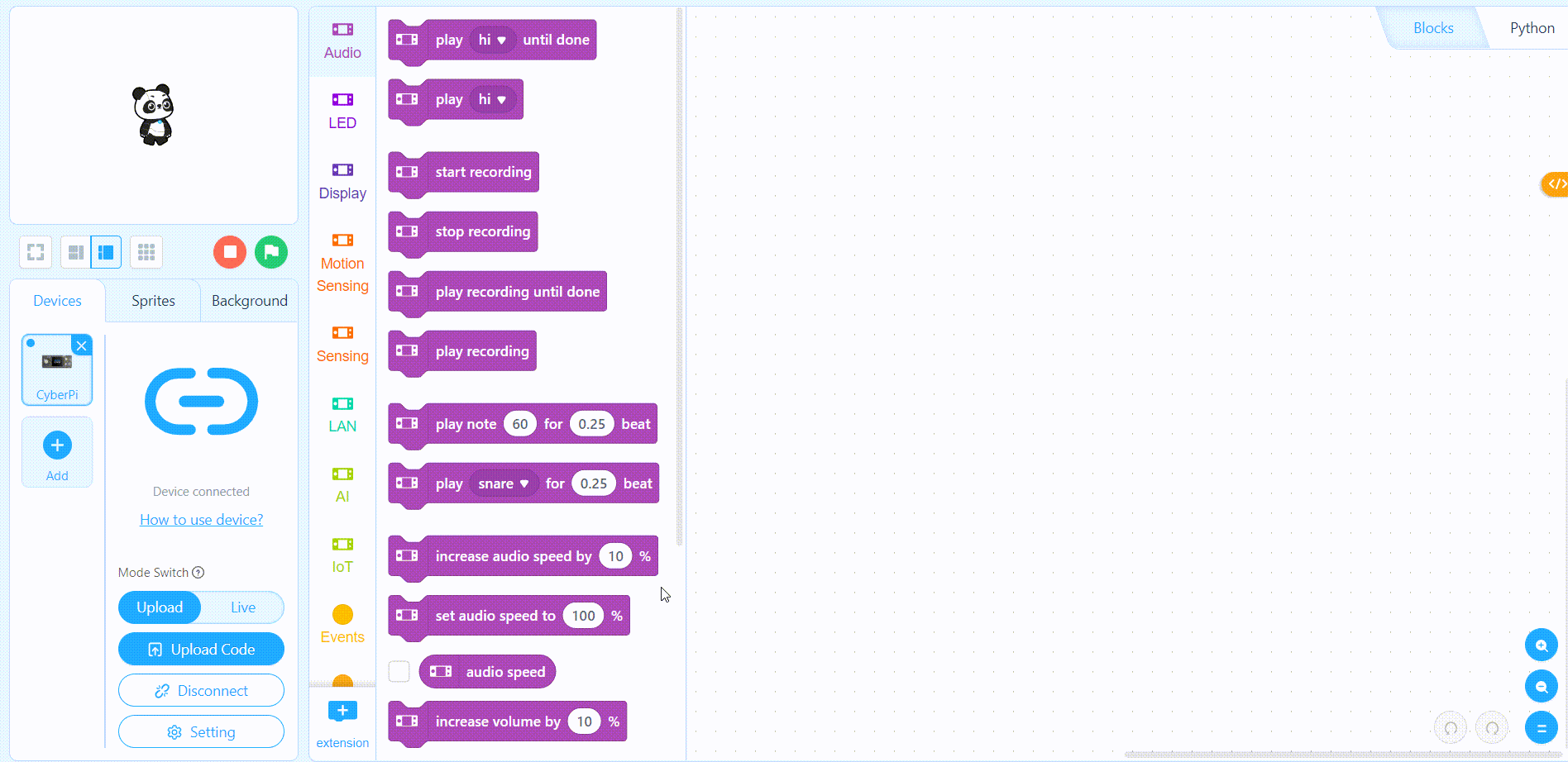

    Write the following program, and upload it to CyberPi. Then you can use buttons 1, 2, 3, and 4 on the Bluetooth controller to change mBot2 Rover's emotion.


    Part 4 Practice

    Try to create some emotional expressions for mBot2 Rover.
