Temperature Sensor

The temperature sensor can detect the temperature of the object that comes into contact with its probe.

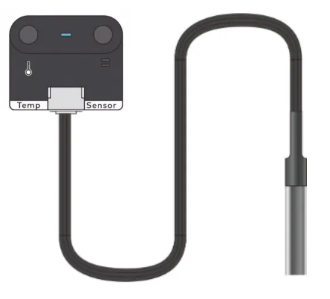

Before you use the temperature sensor, connect it to the probe delivered with it, as shown in the preceding figure.

Real-life example

  • An electronic thermometer uses a temperature sensor.


  • Dimensions: 24 × 20 (mm)
  • Value range: –55 to +125 (℃)
  • Value error: ±0.5℃
  • Operating current: 14 mA
