Emotion Detector

When a happy face is detected, the LED ring of Halocode will light up, and make a smiling face.

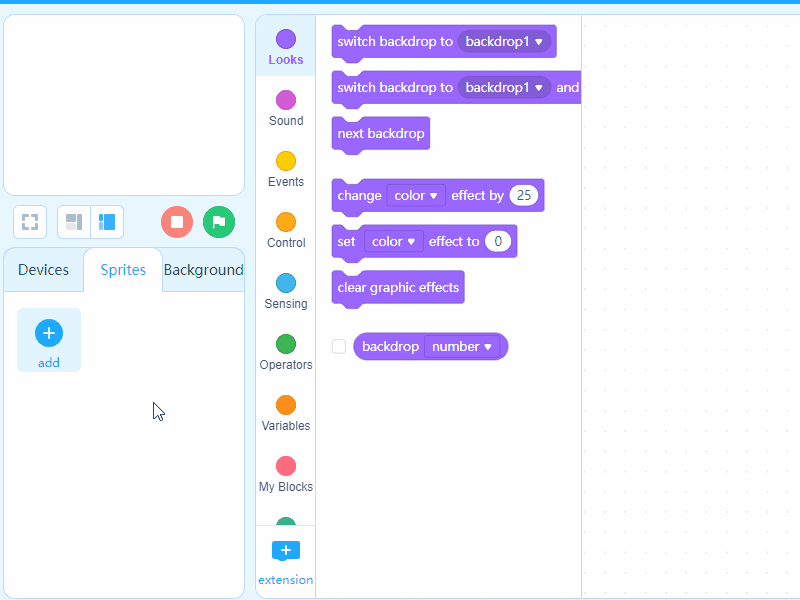

Add a sprite

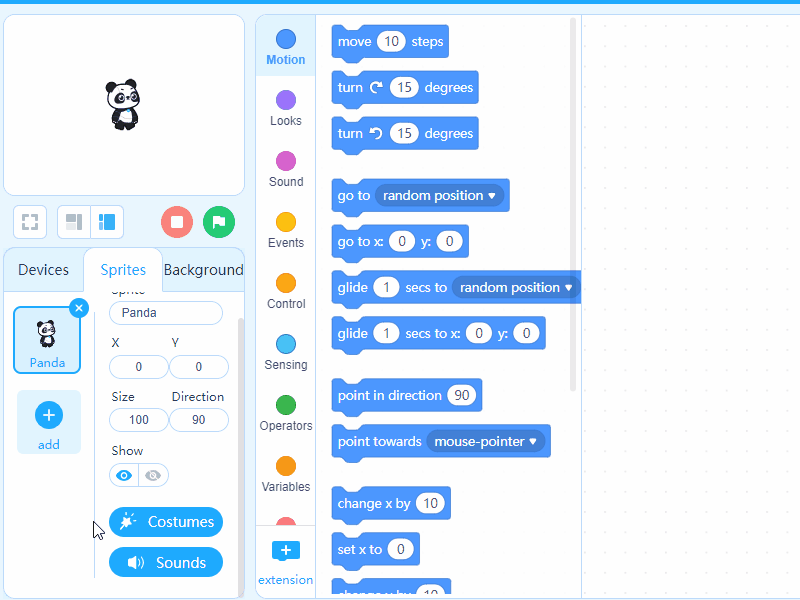

1. Delete default sprite Panda

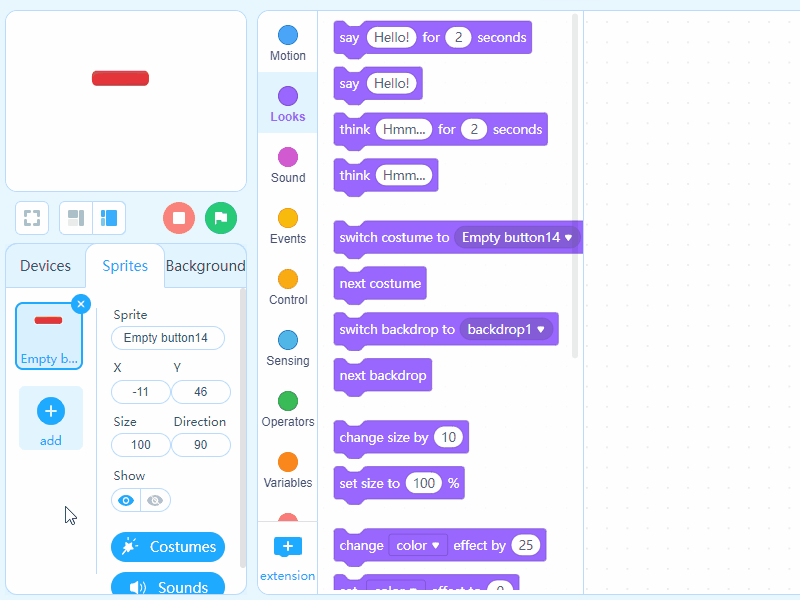

2. Add a new sprite, Empty button14

3. Change the color, and size of the button.

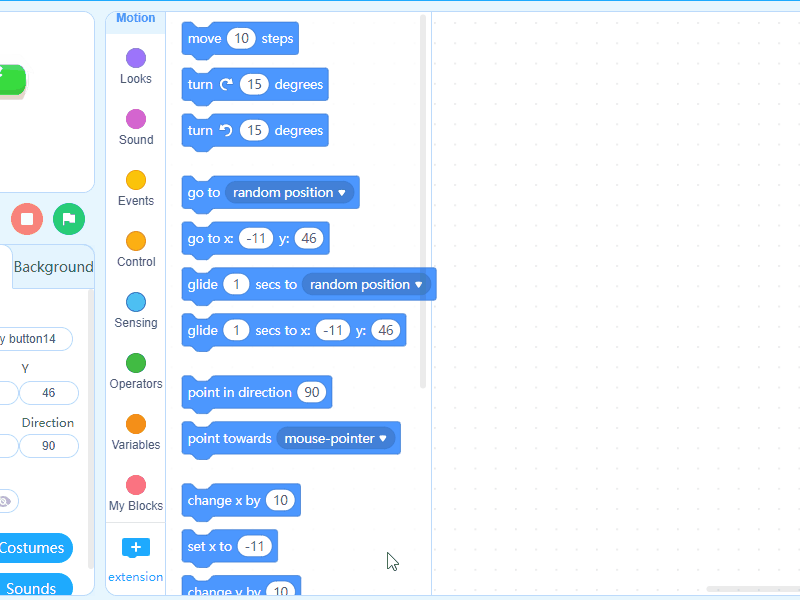

4. In the Blocks Area, click "+ extension" to add Cognitive Services (AI) blocks

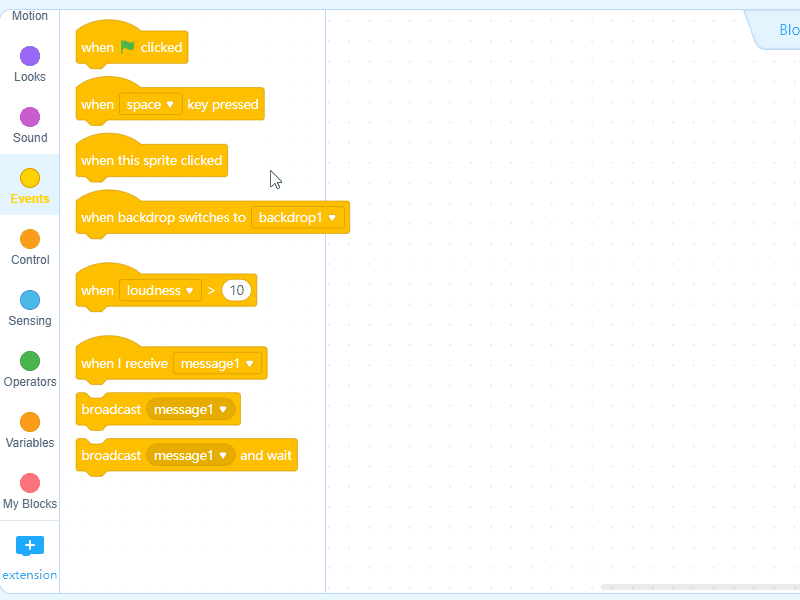

5. Drag an Events block when this sprite clicked to the Scripts Area. Add an AI block  recognize emotion after (1) seconds

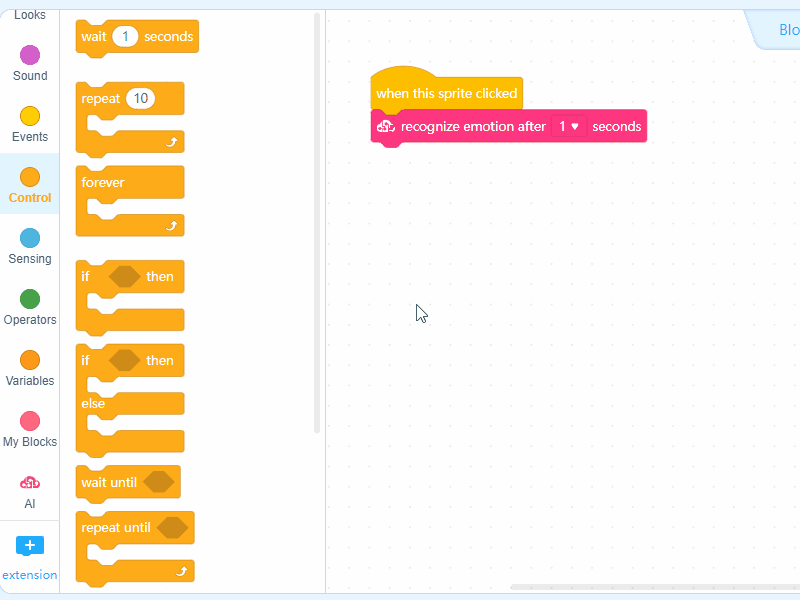

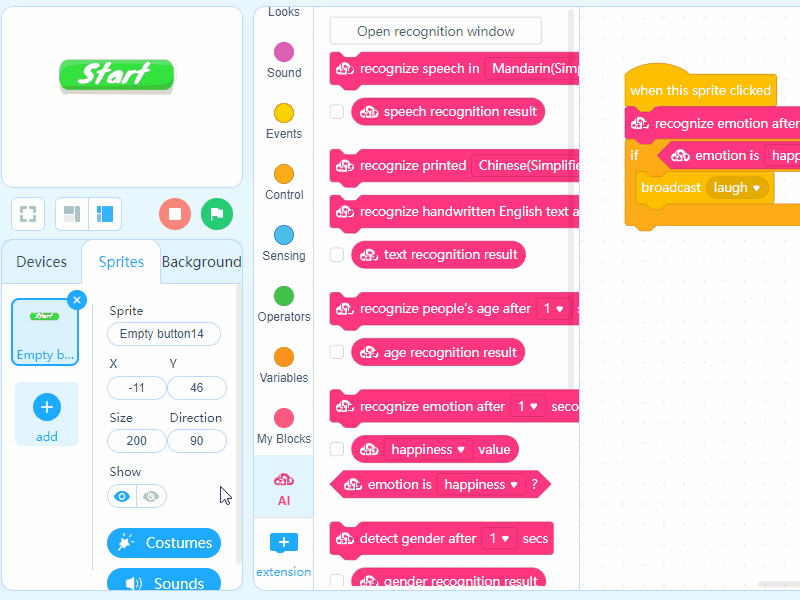

6. Add a Control block ig () then (), an AI block emotion is (happiness)?, and an Events block broadcast (). Create a new piece of message named "laugh"

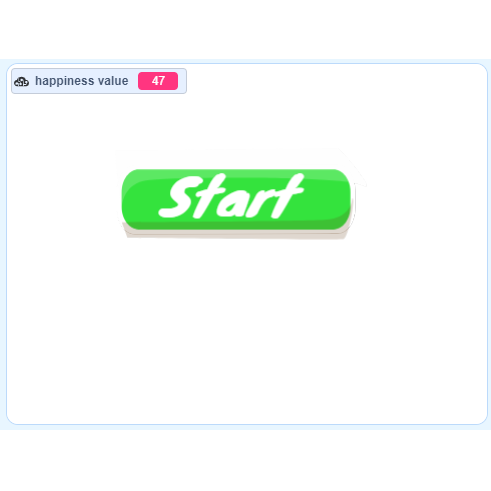

7. Check the box of AI block happiness value () to display the value on stage

Halocode makes a smiling face

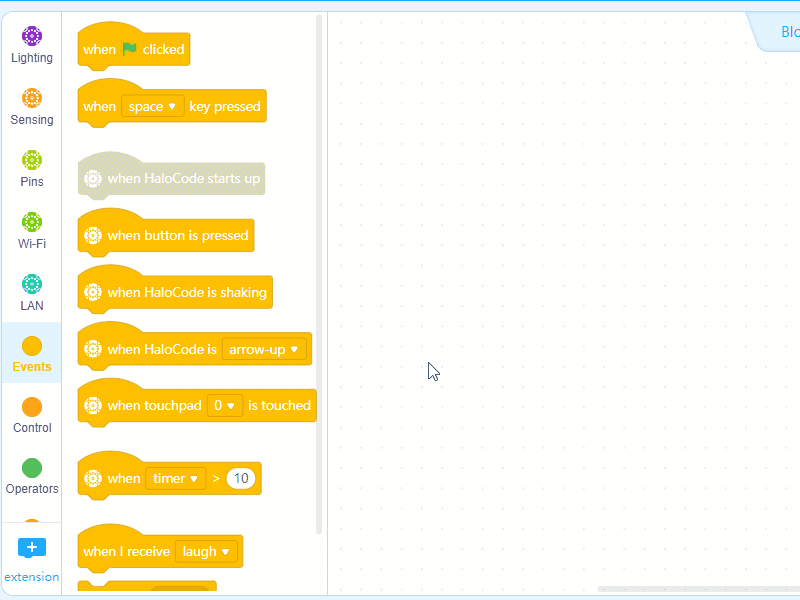

8. Add an Events block 当when I receive (laugh), and a Lighting block show (). Draw a smiling face

9. Add a Control block wait (2) seconds, and a Lighting block light off all LEDs

Download code
