    Raise Your Hand to Make Halocode Smile

    Avatar
    Admin



    When Halocode is placed "arrow-up", the LED ring will light up and make a smile.




    Toggle on Upload mode

    Click to toggle on Upload mode




    Program

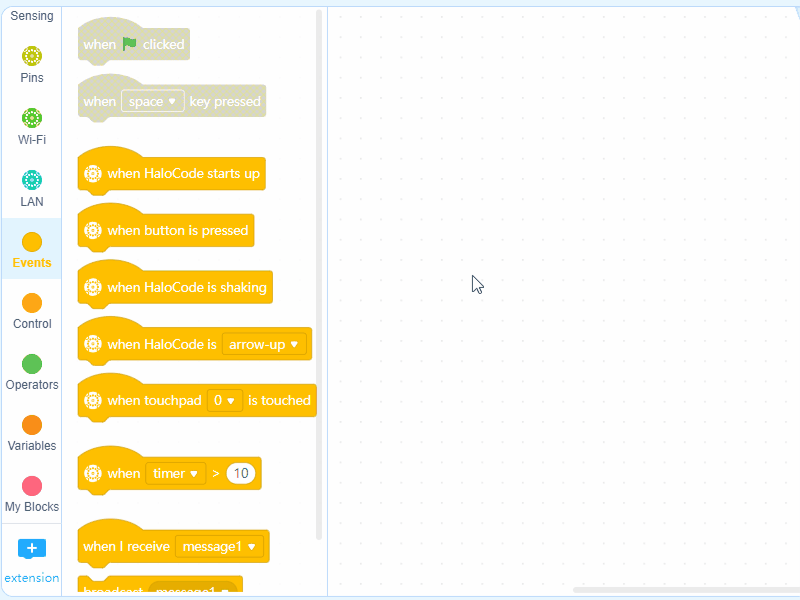

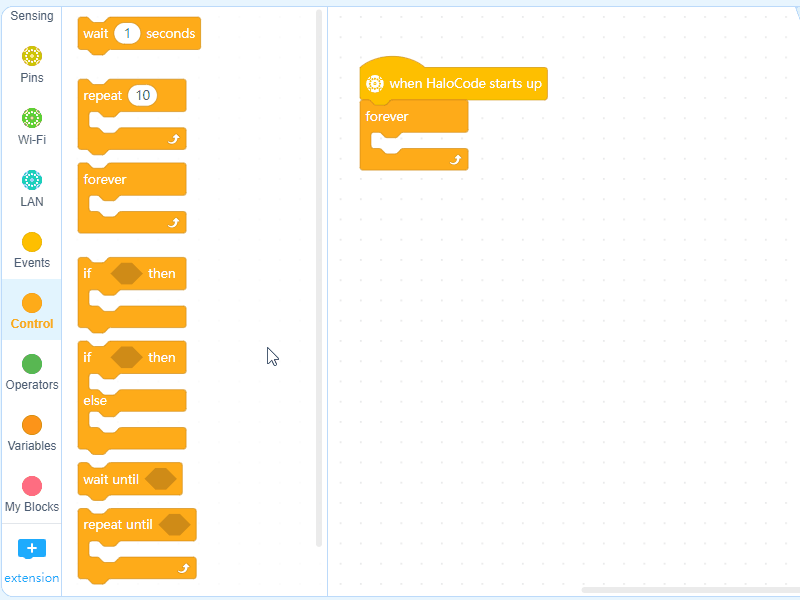

    1. Drag an Events block when Halocode starts up to the Scripts area, and then add a Control block forever。

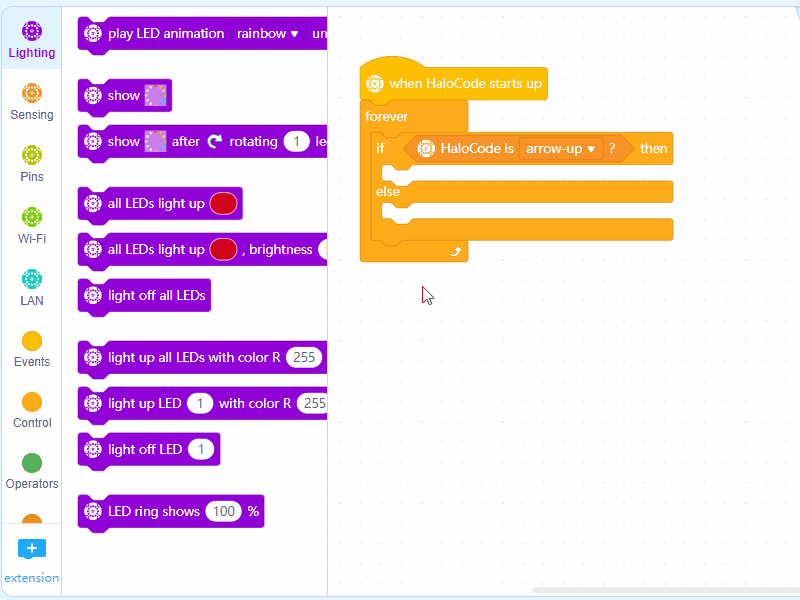

    2. Add a Control block if () then () else, and a Sensing block Halocode is ()?. Choose "arrow-up"

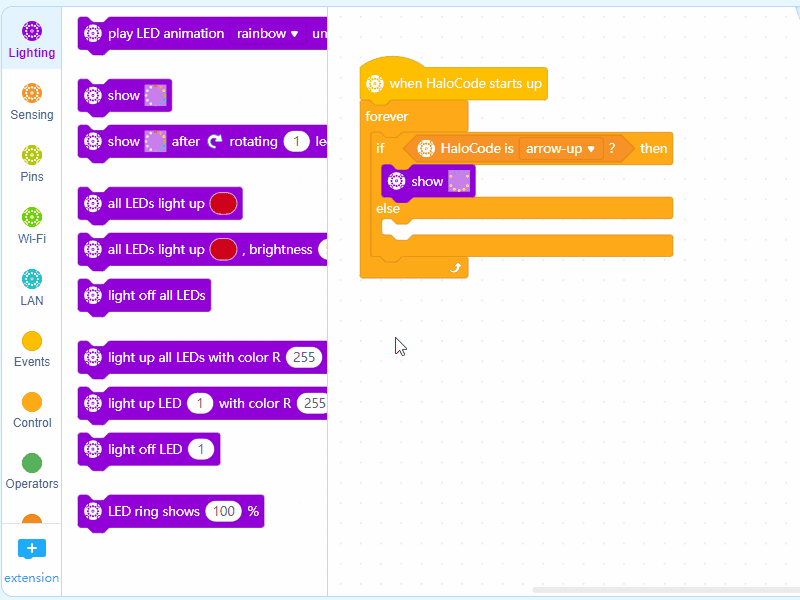

    3. Add a Lighting block show (), and draw a smiling face




    3. Add another Lighting block show ()




    4. Upload the program

    Download code
