LAN



1. set up LAN named ()

Set up a LAN  with a specified name




示例:


When Halocode starts up, set up a LAN  which named "mesh1".


2. join LAN named ()

Join the specified LAN named




示例:


When Halocode starts up, set up and join a LAN named "mesh1".


3. broadcast () on LAN

broadcast a specific message on LAN




示例:


When Halocode starts up, set up and join a LAN named "mesh1",and then broadcast "message" on LAN.



4. broadcast () on LAN with value ()

Broadcast the specified message with the specified value on LAN.




Example:


When Halocode starts up, set up and join a LAN named "mesh1", and then broadcast "message" with the value "1" on LAN.


5. when receiving LAN broadcast ()

When the specified LAN broadcast is received, run the script.




Example:


When Halocode receives LAN broadcast "message", all the LEDs will light up green.


6. LAN message () value received

Report the value sent with the specified LAN broadcast.

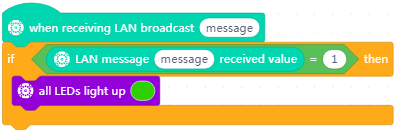

Example:


When Halocode receives LAN broadcast "message", if the value received with the message is "1", all the LEDs will light up green.
