Pins

1. pin () in high voltage

If the specified pin is in high voltage, the report condition is met.

Example:

When Halocode starts up, if pin0 is in high voltage, all the LEDs will light up green.

2. digital read pin ()

Read the digital value of the specified pin (0, 1, 2, 3). The value is 0 or 1.

Example:

When Halocode starts up, if the digital value of pin0 is 0, all the LEDs will light up green; otherwise, red.

3. analog read pin ()

Read the analog value of the specified pin (0, 1, 2, 3). The value range is 0-1023.

Example:

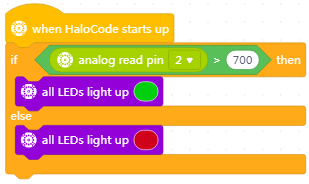

When Halocode starts up, if the analog value of pin2 is greater than 700, all the LEDs will light up green, otherwise, red.

4. digital write () to pin ()

Write the specified digital value (0 or 1) to the specified pin (0, 1, 2, 3).

Example:

When Halocode starts up, digital write 1 to pin0.

5. analog write () to pin ()

Write the specified analog value (0-1023) to the specified pin (0, 1, 2, 3).

Example:

When Halocode starts up, analog write 1023 to pin0.

6. servo pin () rotates to ()°

Rotates the servo of the specified pin (0, 1, 2, 3) to the specified angle.

Example:

When Halocode starts up, rotate the servo of pin0 to 90 degrees.
