This guide applies to:

mBot2, mBot Neo, and CyberPi.

In a Nutshell

Learn more about the programs in CyberOS:

How to View and Switch Between Preset Program and My Program

How to Upload Programs to CyberPi or mBot2

Step by Step

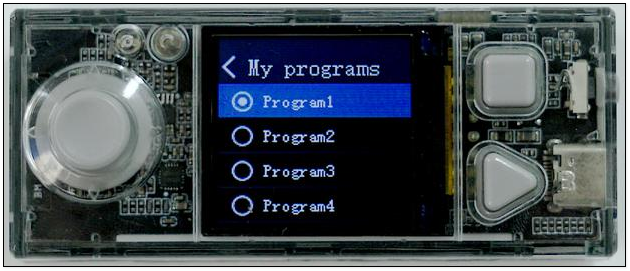

#1 Find My Programs in CyberOS

For details, please refer to this guide:

How to View and Switch Between Preset Program and My Program

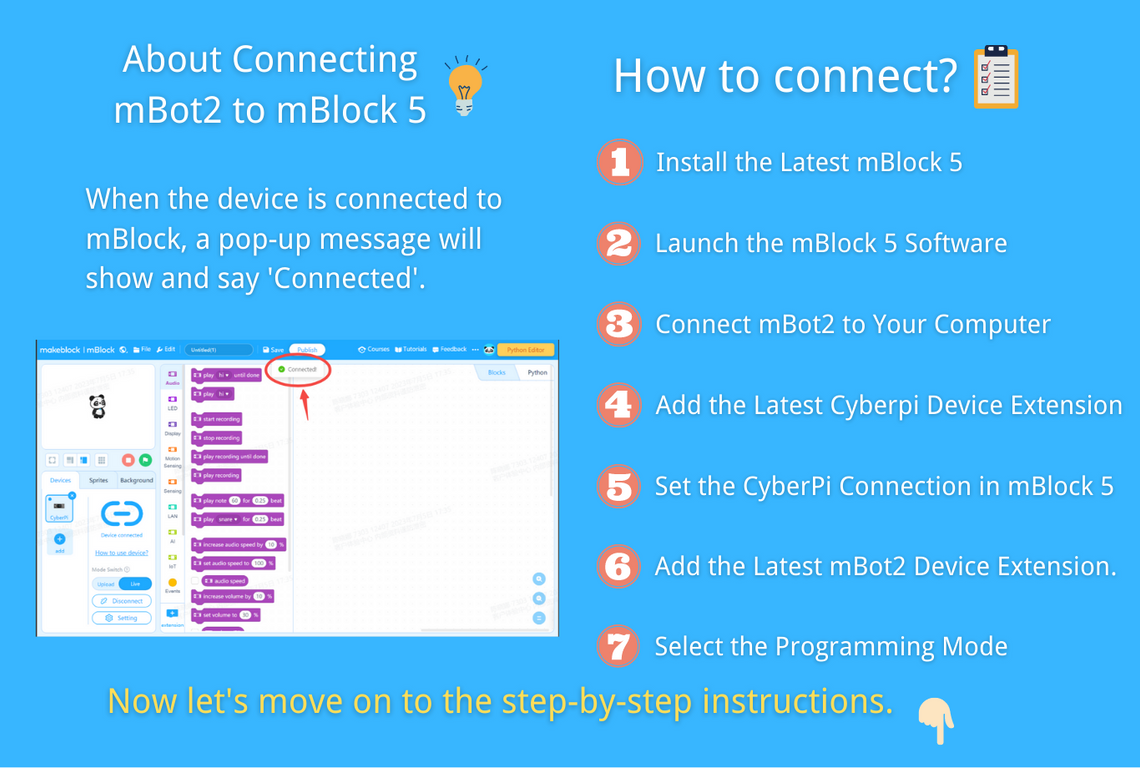

#2 Connect the Device to mBlock 5

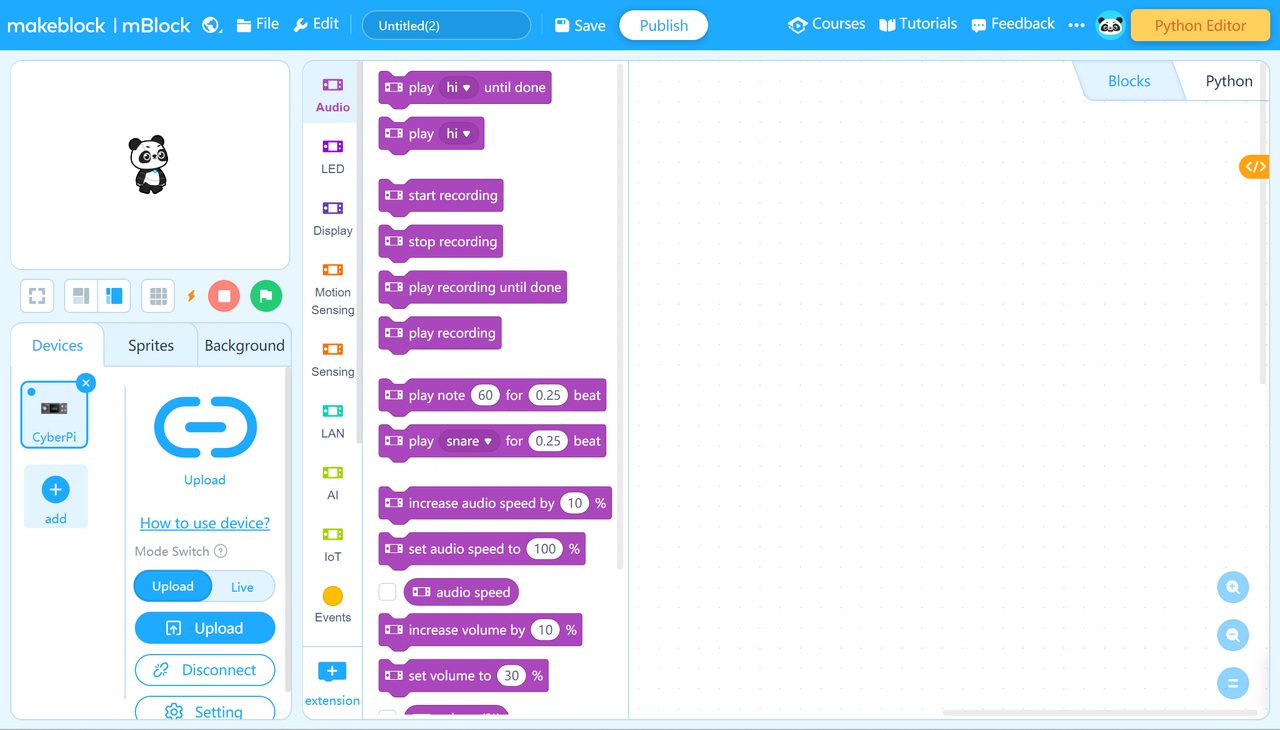

After the connection is done, switch to upload mode.

For details, please see these guides:

How to Connect mBot2 to mBlock 5

How to Connect CyberPi to mBlock 5

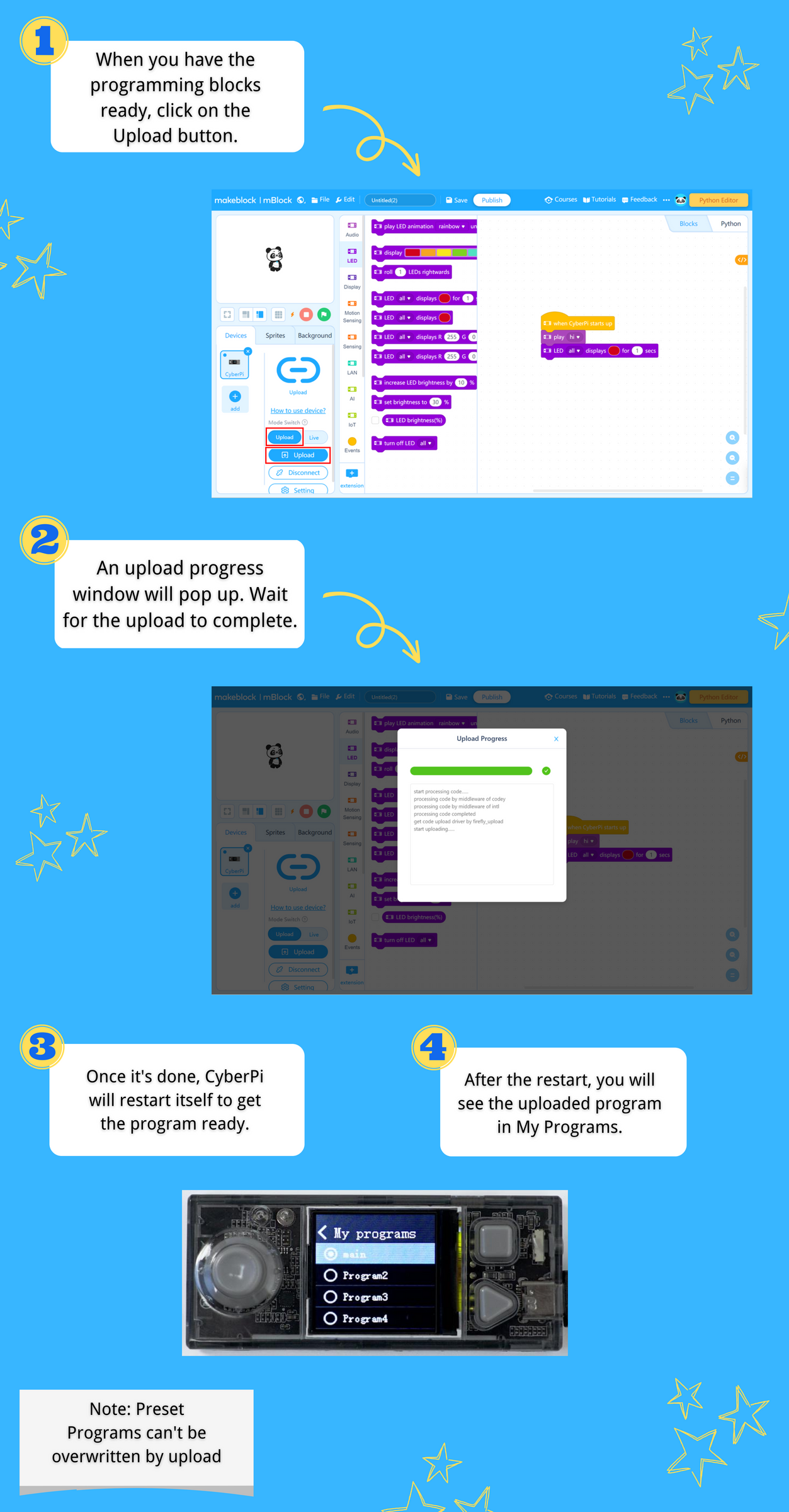

#3 Upload the Program to CyberPi

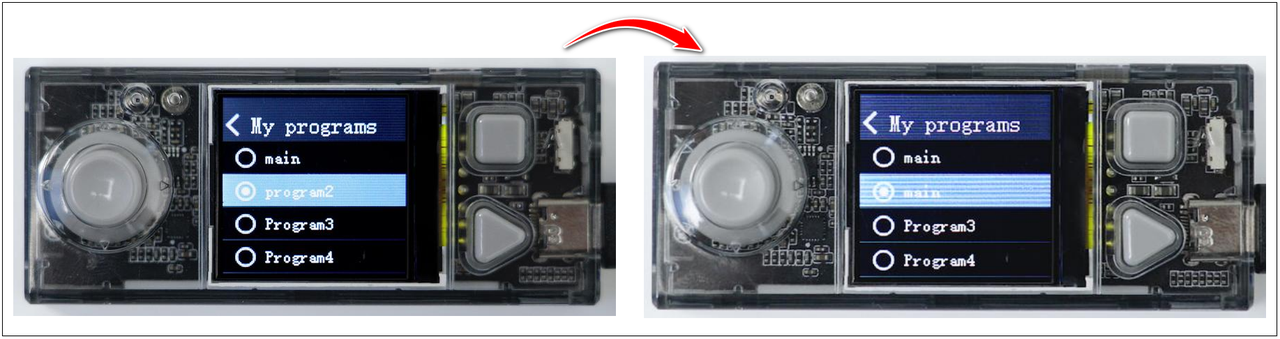

Tips 1: Upload to a Different Program Slot

1. The uploaded program will be named 'main' and overwrite 'Program 1' by default.

2. If you want to upload your program to another slot, select that slot and run it.

The system will then send the new program to that slot specifically.

3. You can name your program by using the mBlock 5 web version.

This will help you tell different programs with names.

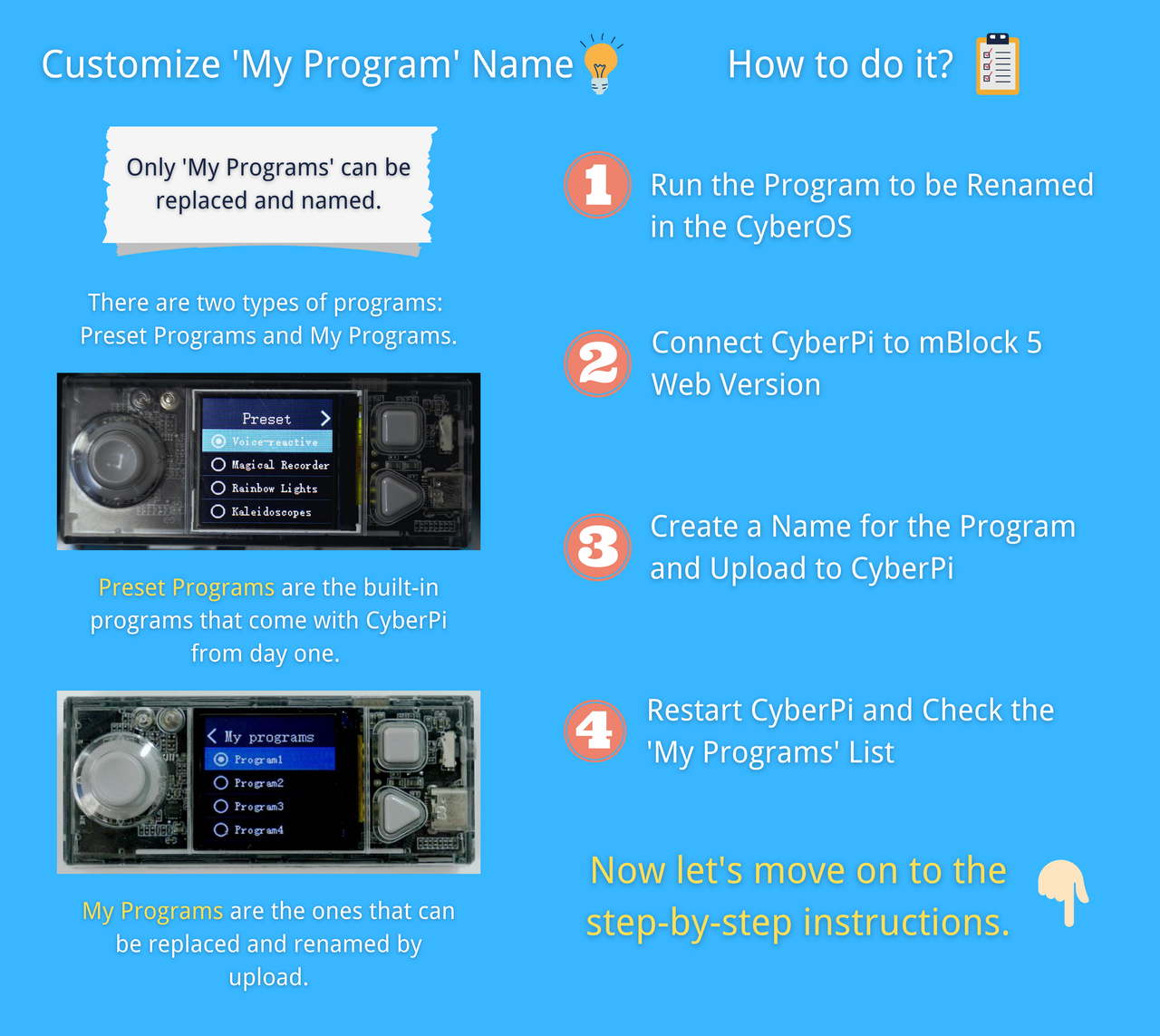

Tips 2: Customize My Program Name

Currently, program names can only be customized in the mBlock 5 web version.

For details, please see this guide:

How to Upload Programs to CyberPi or mBot2

Got Questions?

Feel free to contact us at:

service@makeblock.com

Help Us Solve Faster

We have listed some useful information you can provide to us. When you contact us, the more information you provide, the better informed we will be and the quicker we can advise and answer your questions.

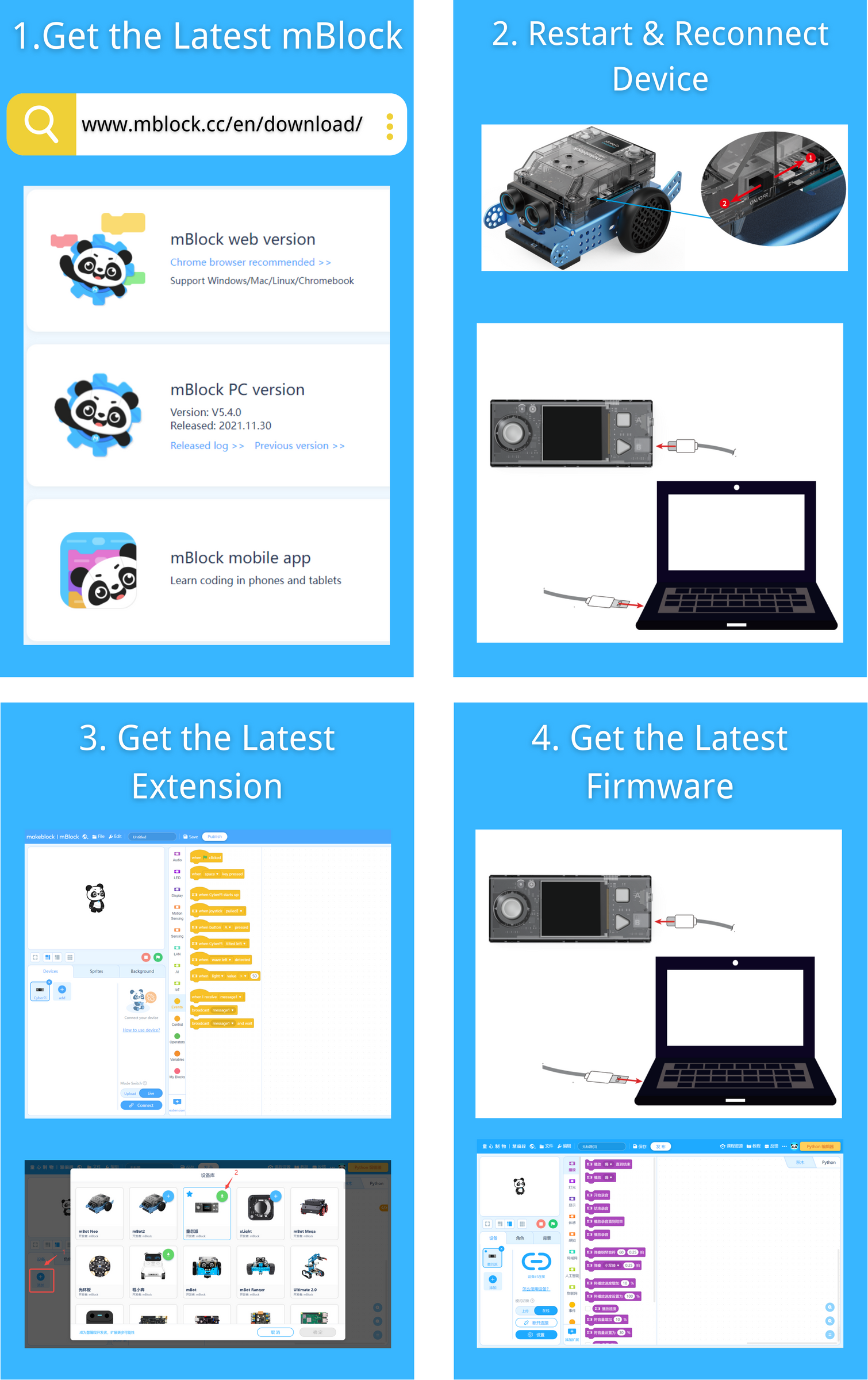

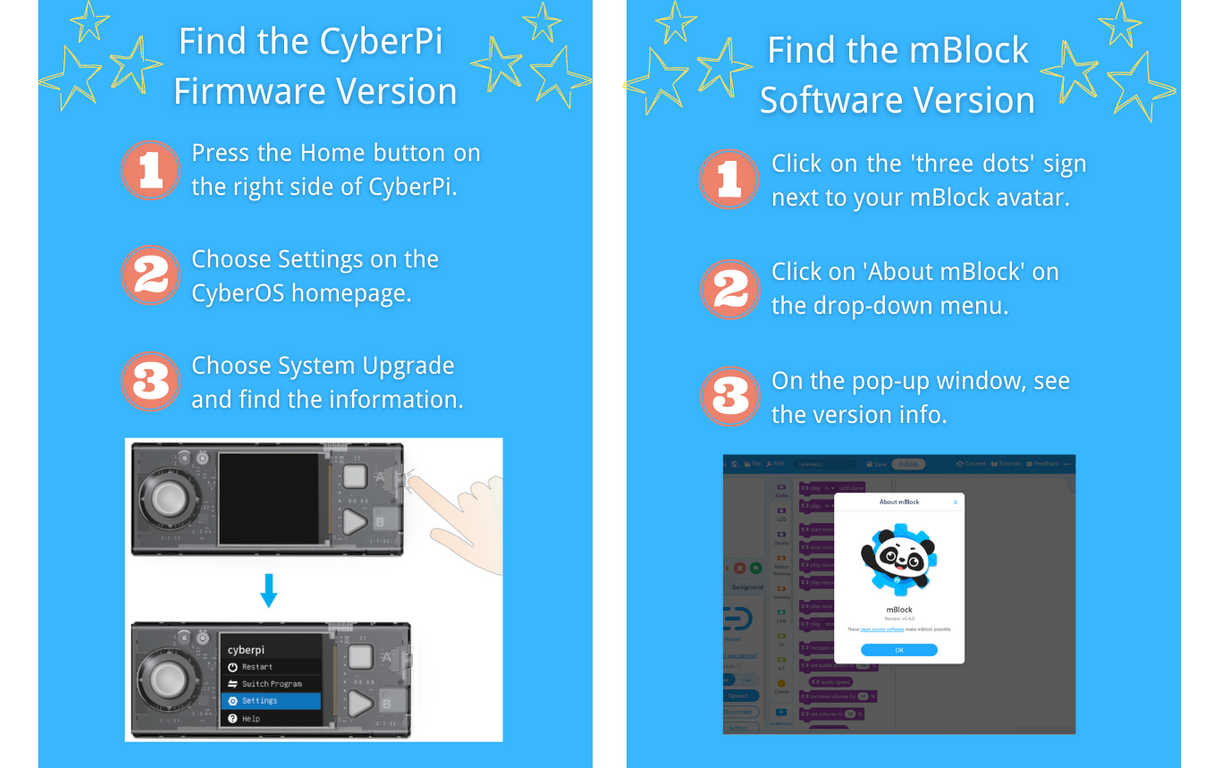

Not Sure Where to Find the Version Info?
