This guide applies to:
mBot2, mBot Neo, and CyberPi.
In a Nutshell
Learn more about the programs in CyberOS:
How to Upload Programs to CyberPi or mBot2
How to View and Switch Between Preset Program and My Program
Step by Step

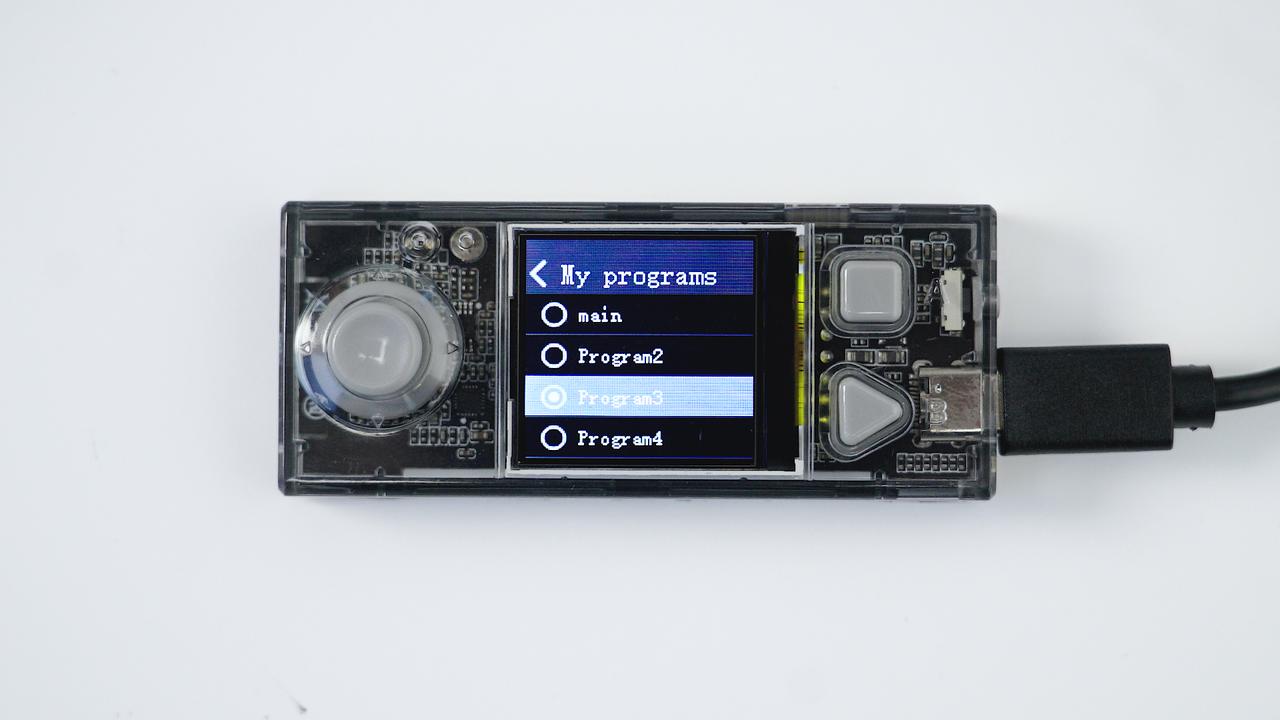

#1 Run the Program to be Renamed
Go to 'My Programs' and select the program and press Button B to run it.
Refer to this article below to switch to My Programs.
#2 Visit mBlock5 Web Version
Open the web version of mBlock5, and it should install mblink2.
Note: It's recommended to use Chrome, otherwise, some functions may be blocked.
#3 Connect CyberPi to mBlock5
And make sure to select the Upload Mode.
For details, please refer to this guide: How to Connect CyberPi to mBlock 5
#4 Create a Name for Your Program and Upload It
#5 Restart CyberPi and Check the 'My Programs' List
After the uploading is completed, reboot CyberPi and switch to My Programs.
Program 3 is covered by the name of the uploaded program.
Note:
-
Upload a program to My Programs via CyberPi, program1 will be covered and the name is "main".
-
If you want to upload the program to others, you need to get the CyberPi to run My Programs.

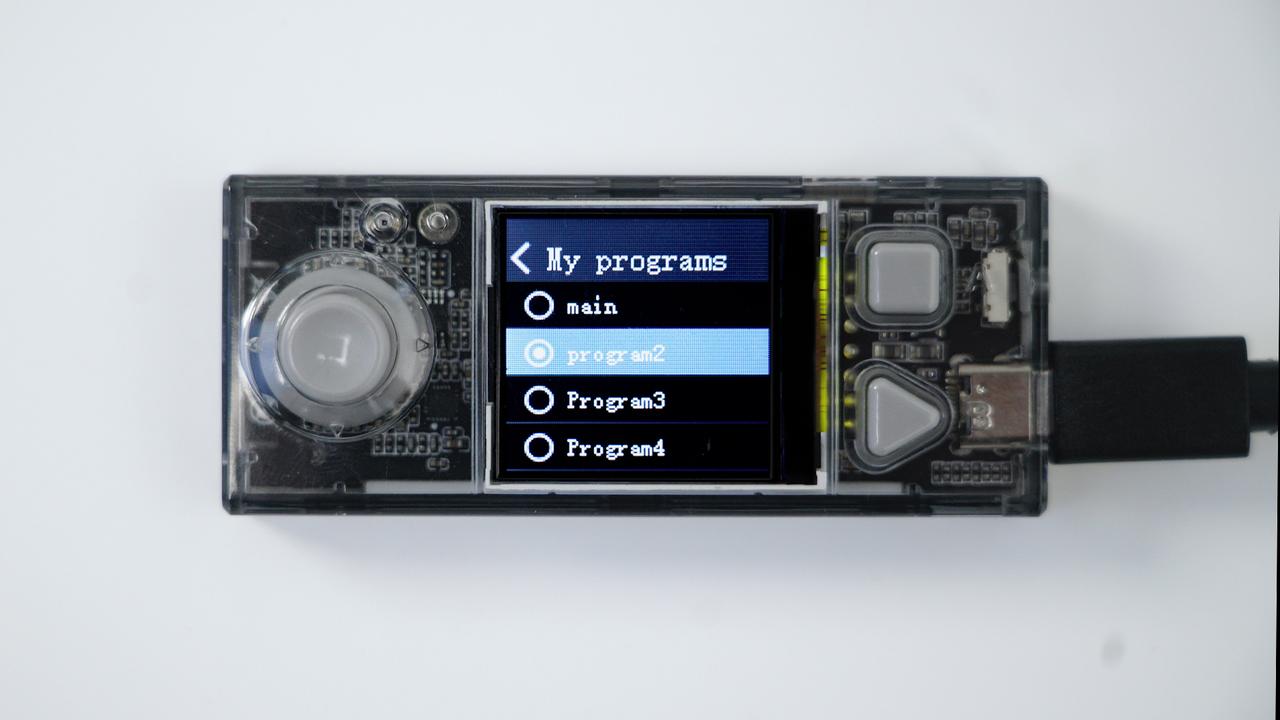

- Before uploading, if CyberPi is running Program2, it will upload the new program to Program2.
