This guide applies to:

mBot2 and mBot Neo.

In a Nutshell

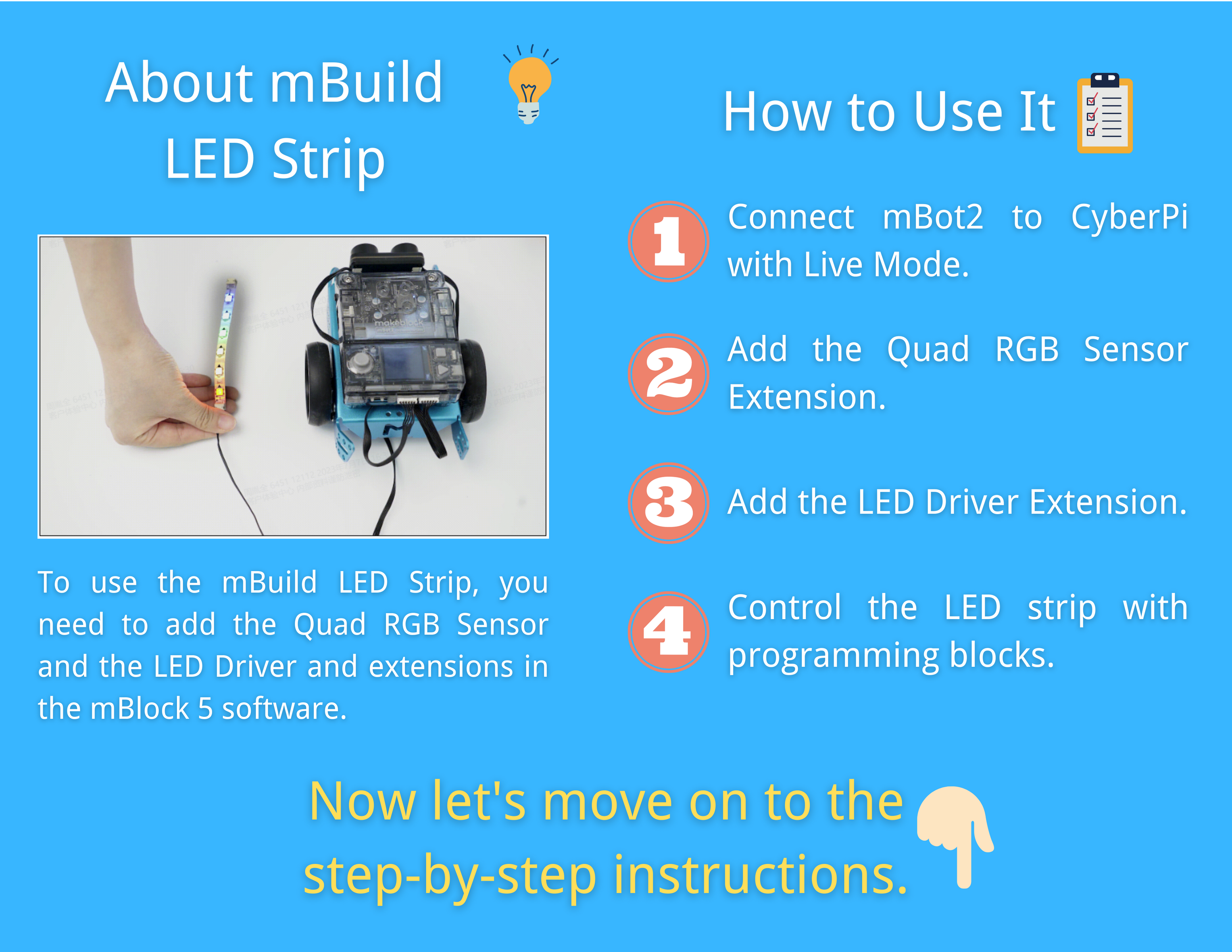

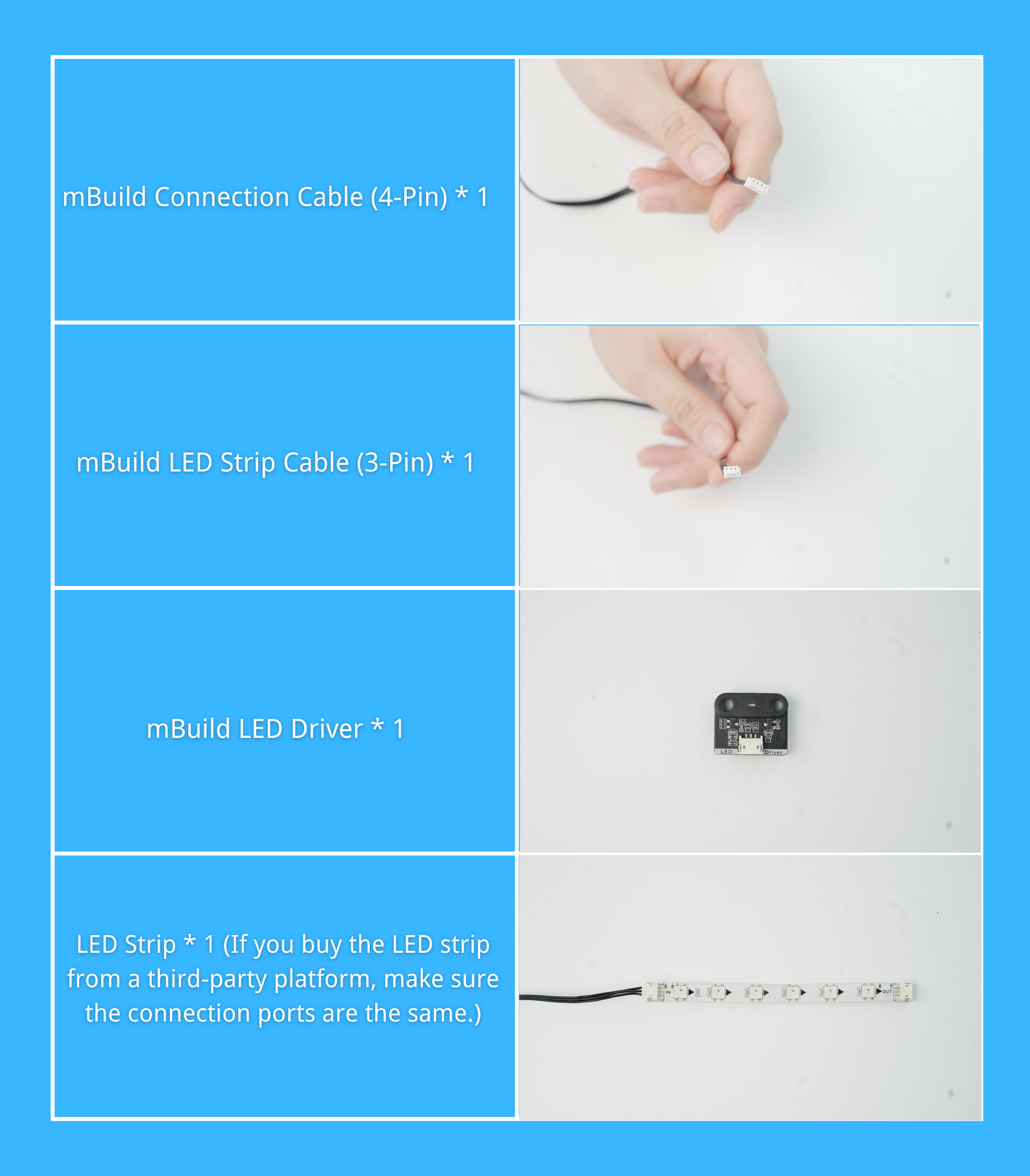

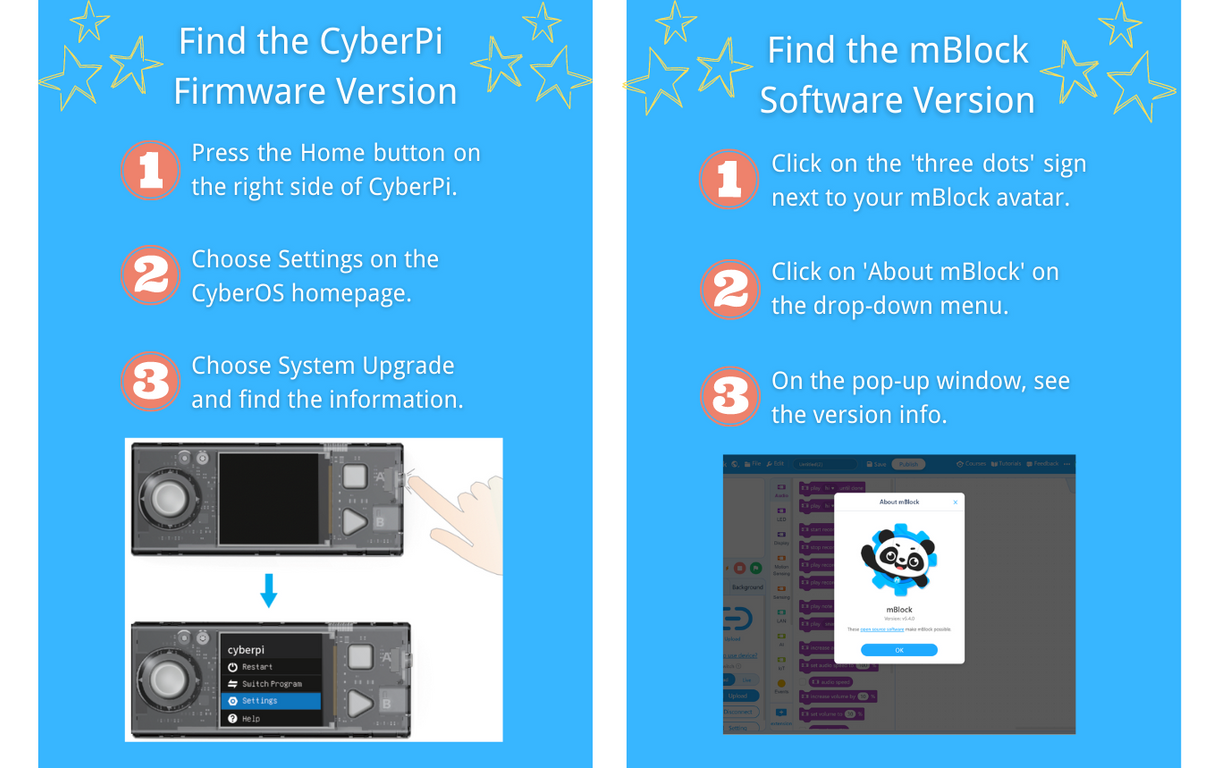

Prepare the Components

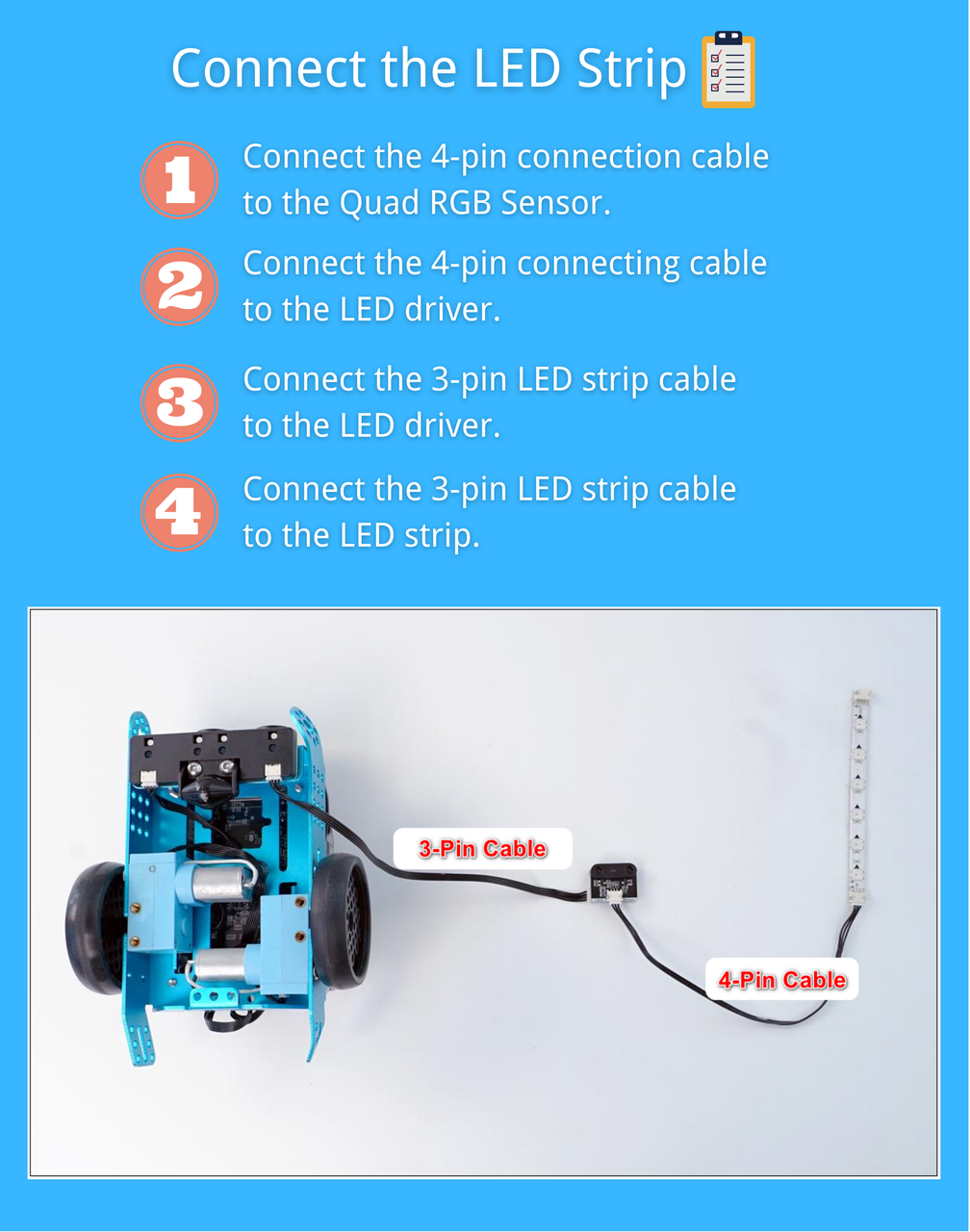

Connect the Components

Note: One end of the LED strip connecting cable should be connected to the IN port on the LED strip.

Make the Settings in mBlock 5

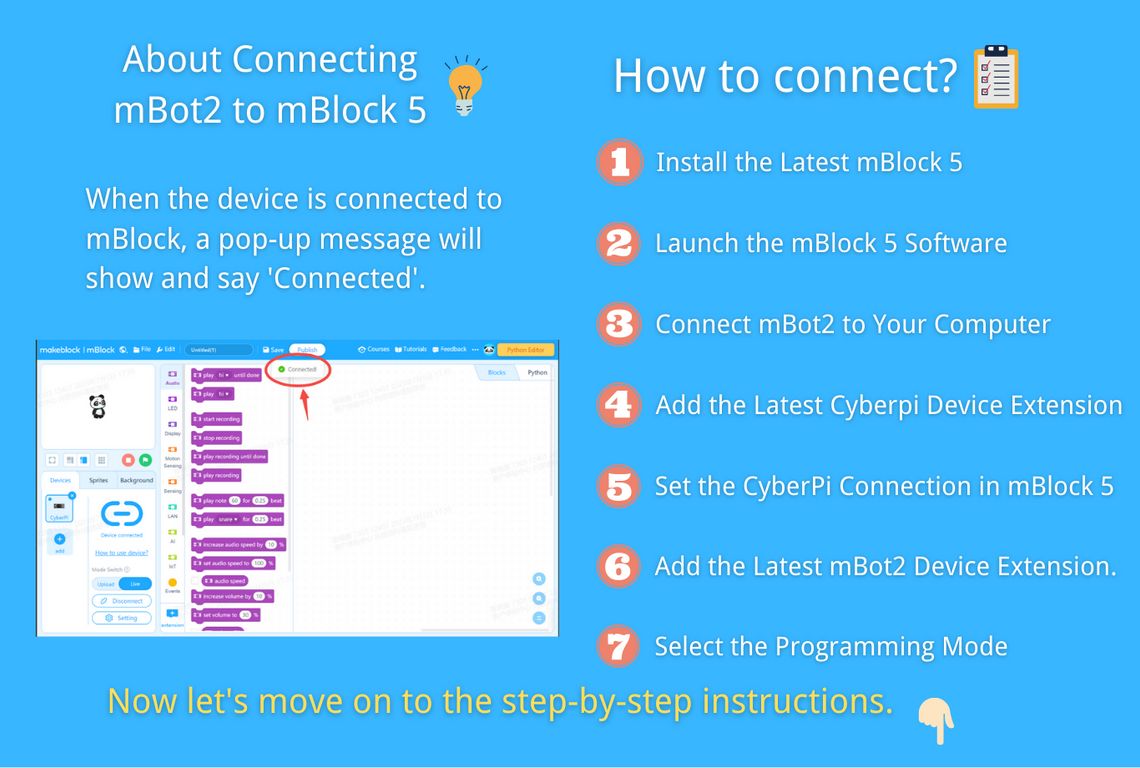

#1 Connect mBot2 to mBlock 5.

For details, please see this guide: https://support.makeblock.com/hc/en-us/articles/15850718565399

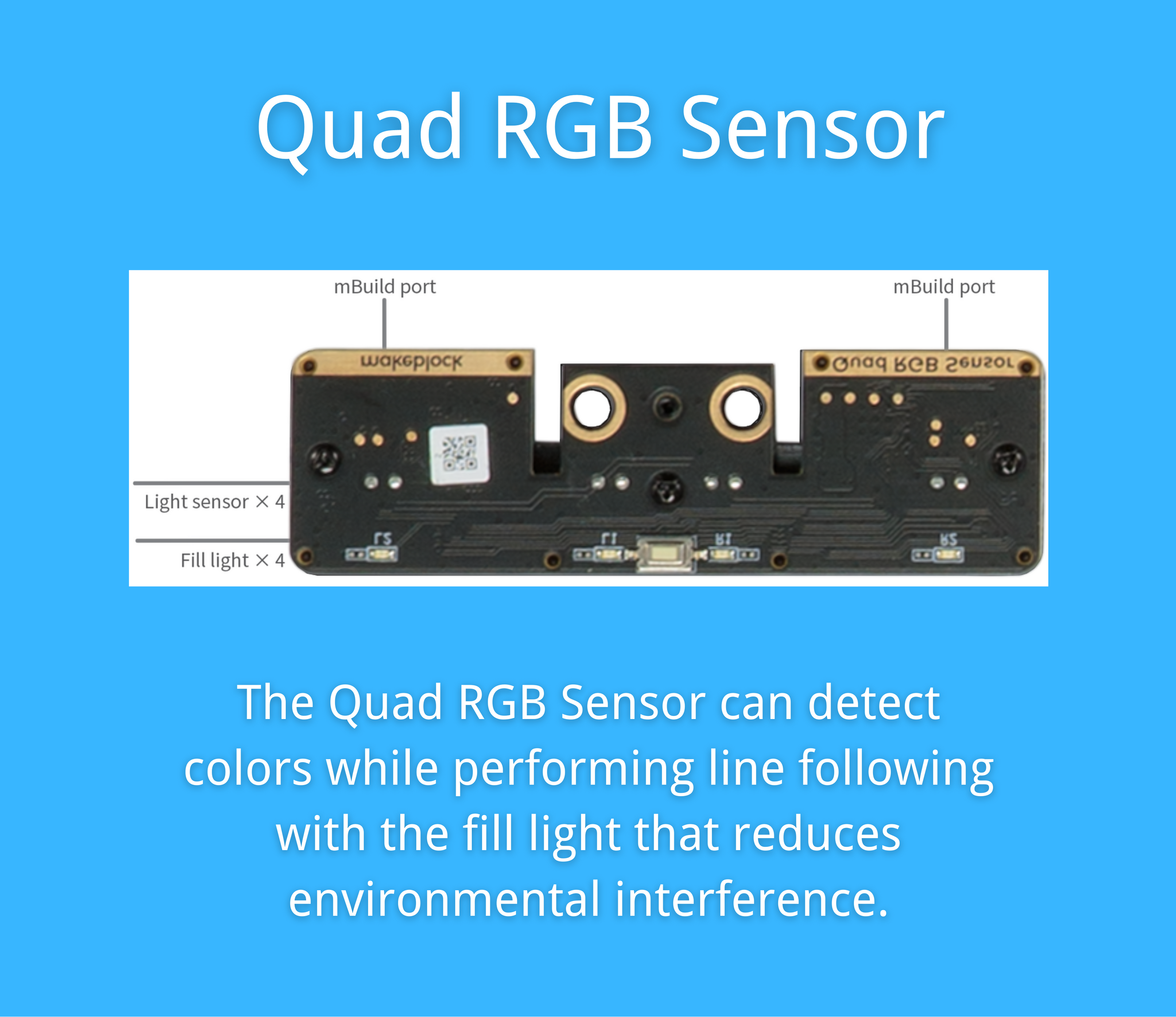

#2 Add the 'Quad RGB Sensor' Extension.

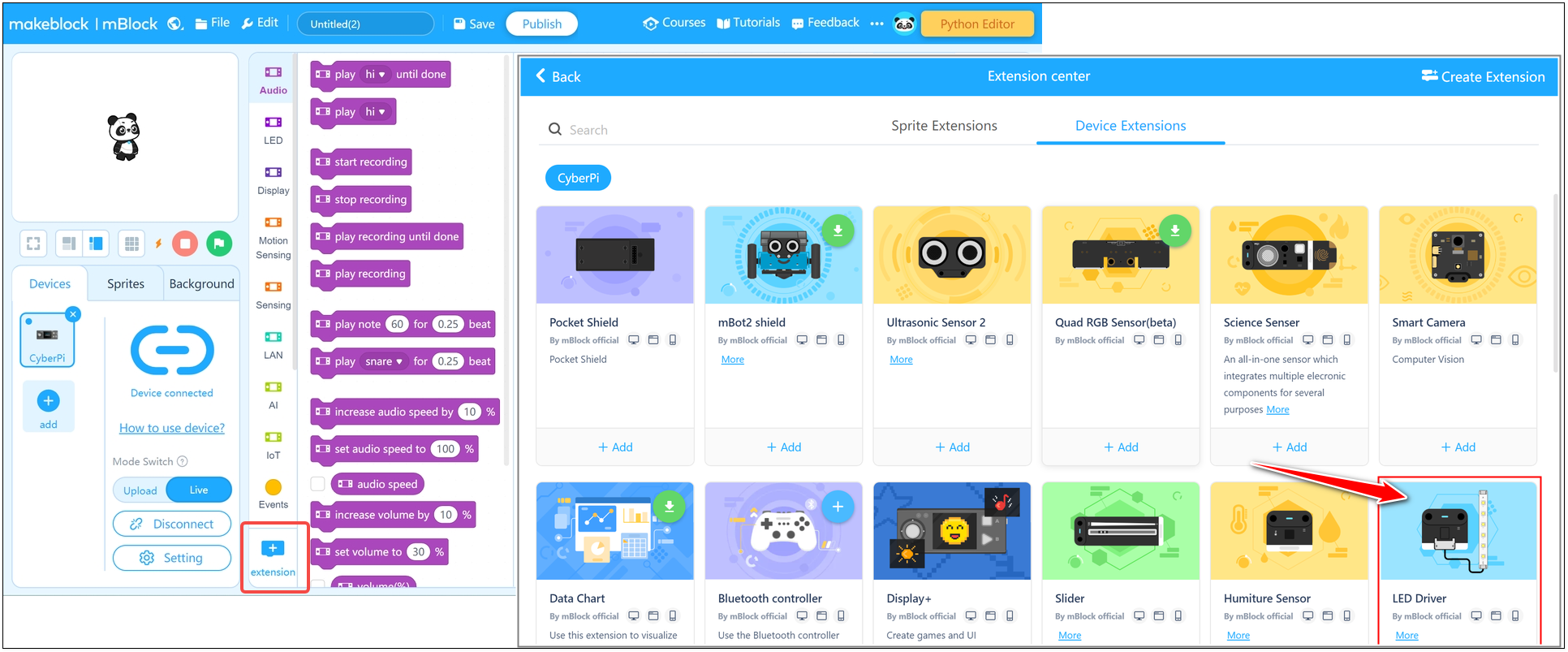

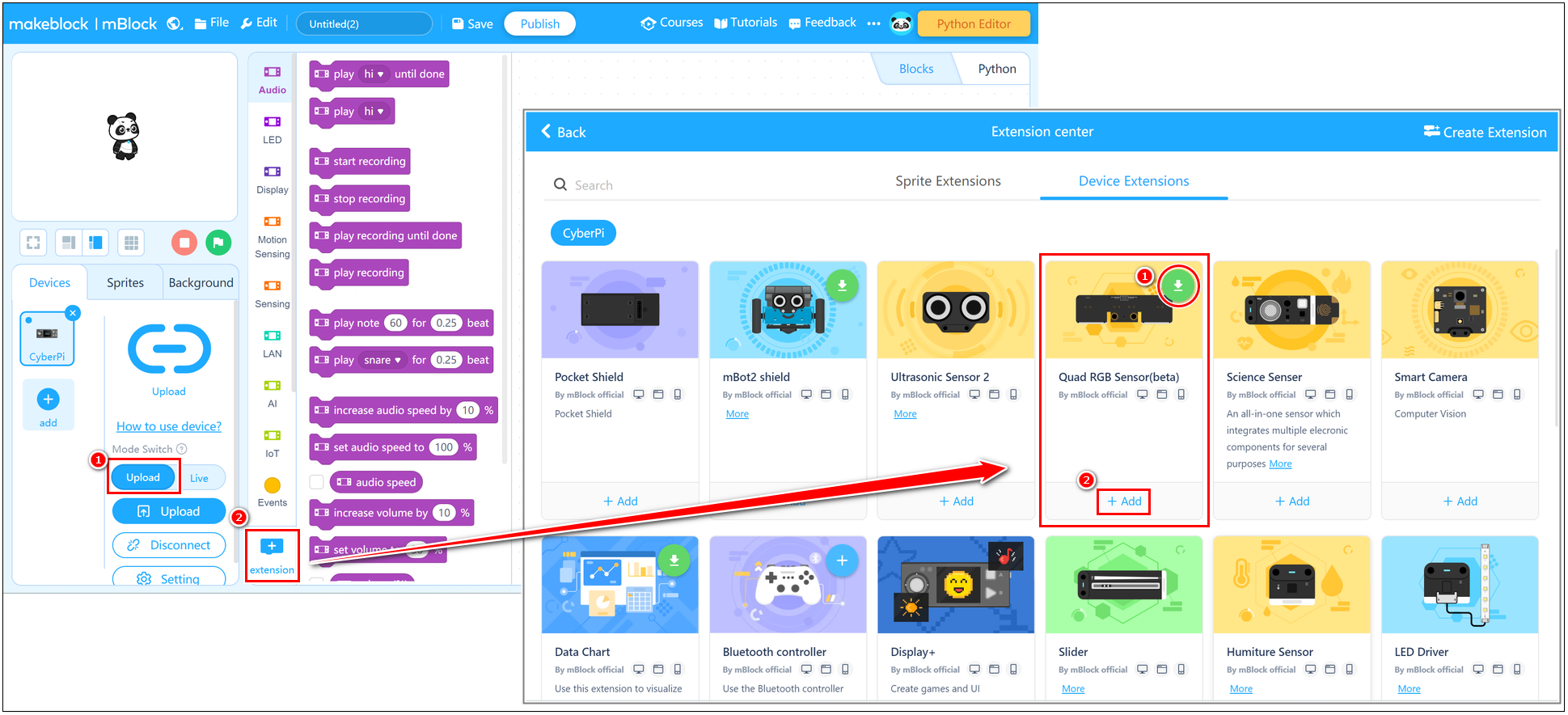

1. Click 'extension' to go to the extension center.
2. Click the 'add' button under the Quad RGB Sensor.
3. Make sure you get the latest version of the extension.

#3 Add the 'LED Driver' Extension.

1. Click 'extension' to go to the extension center.
2. Click the 'add' button under the LED Driver.
3. Make sure you get the latest version of the extension.

#4 Check the LED Strip

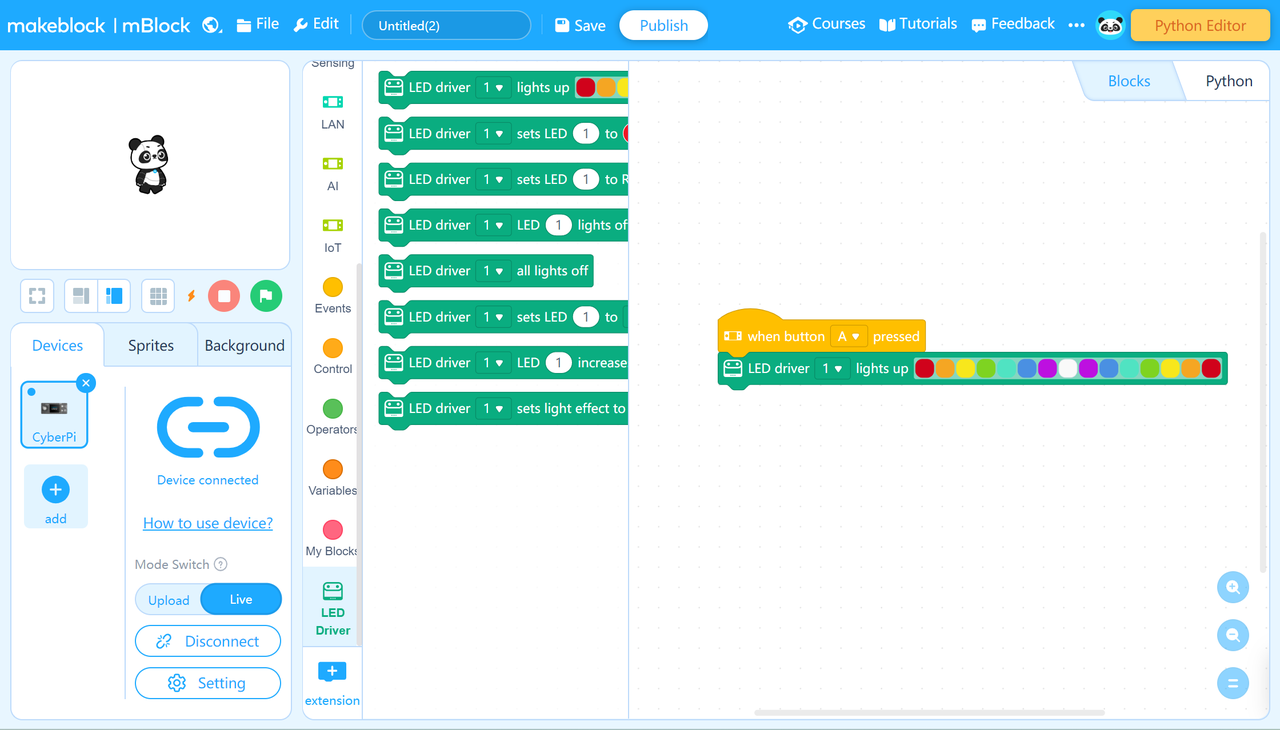

1. Drag the block "when CyberPi starts up" and "LED Driver 1 lights up" to the editing area.
2. Left-click on the blocks and press Button A on mBot2 to see if the light is on.
