2. How to Connect mBot2 to mBlock 5

This guide applies to:

mBot2, mBot Neo, and CyberPi.

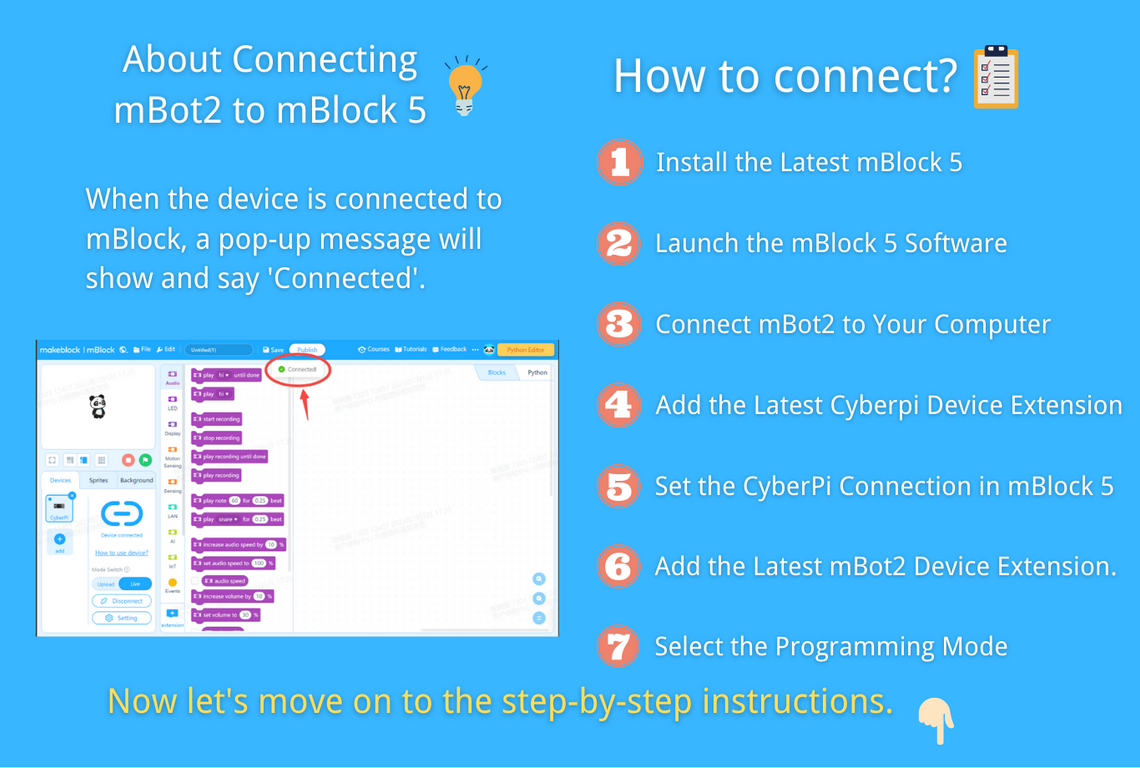

In a Nutshell


Step by Step

#1 Install the Latest mBlock 5

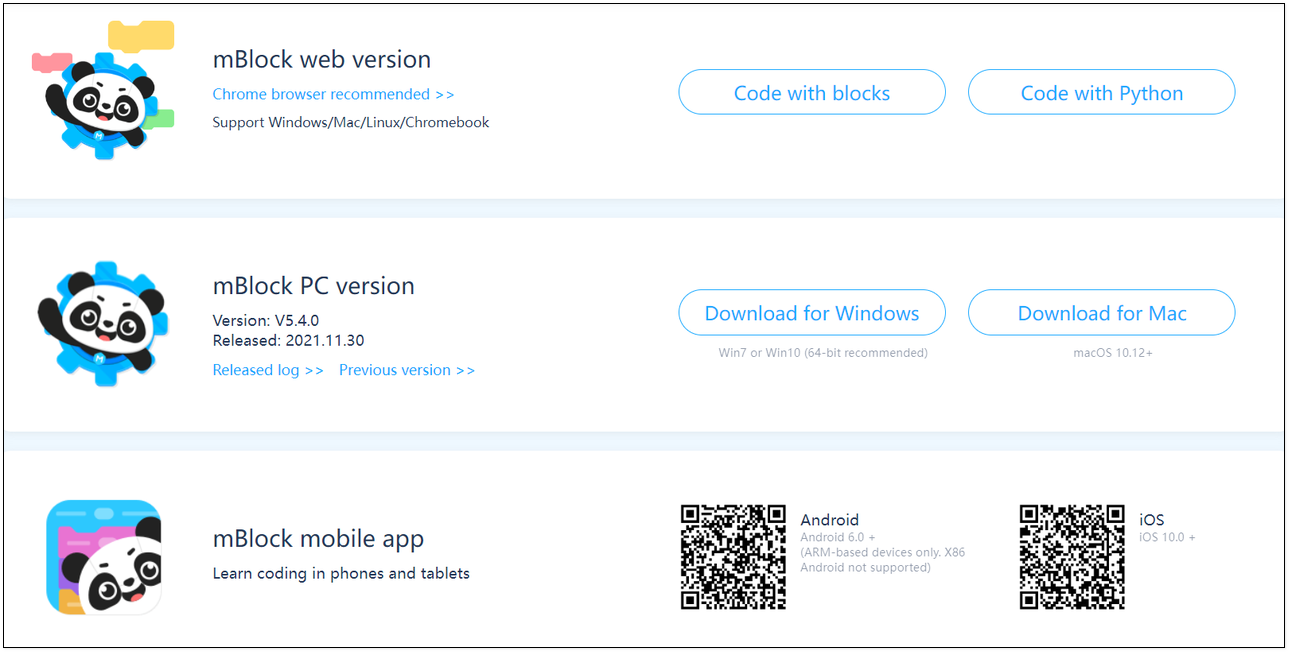

  1. Go to the official download webpage and get the latest mBlock software.

  2. Download the platform version that suits your device and preference.


#2 Launch the mBlock 5 Software

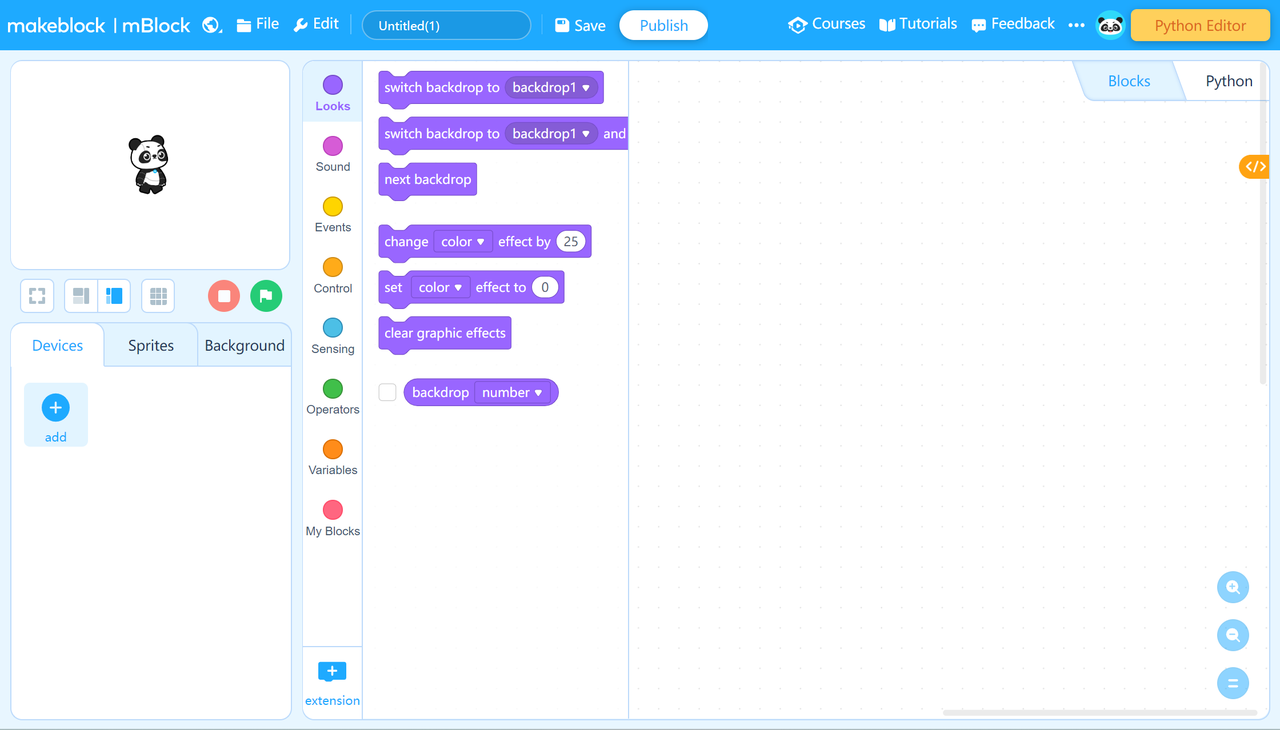

You will see this home screen.

Note: For some cloud-based features, you'll need to log in to your mBlock account.


#3 Connect mBot2 to Your Computer

You can either connect by a USB-C Cable or by the Bluetooth Adaptor.

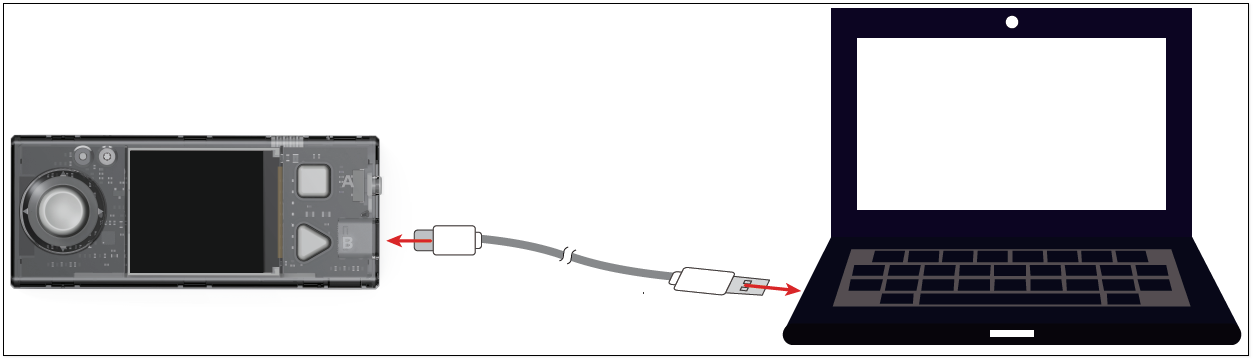

For USB connection:

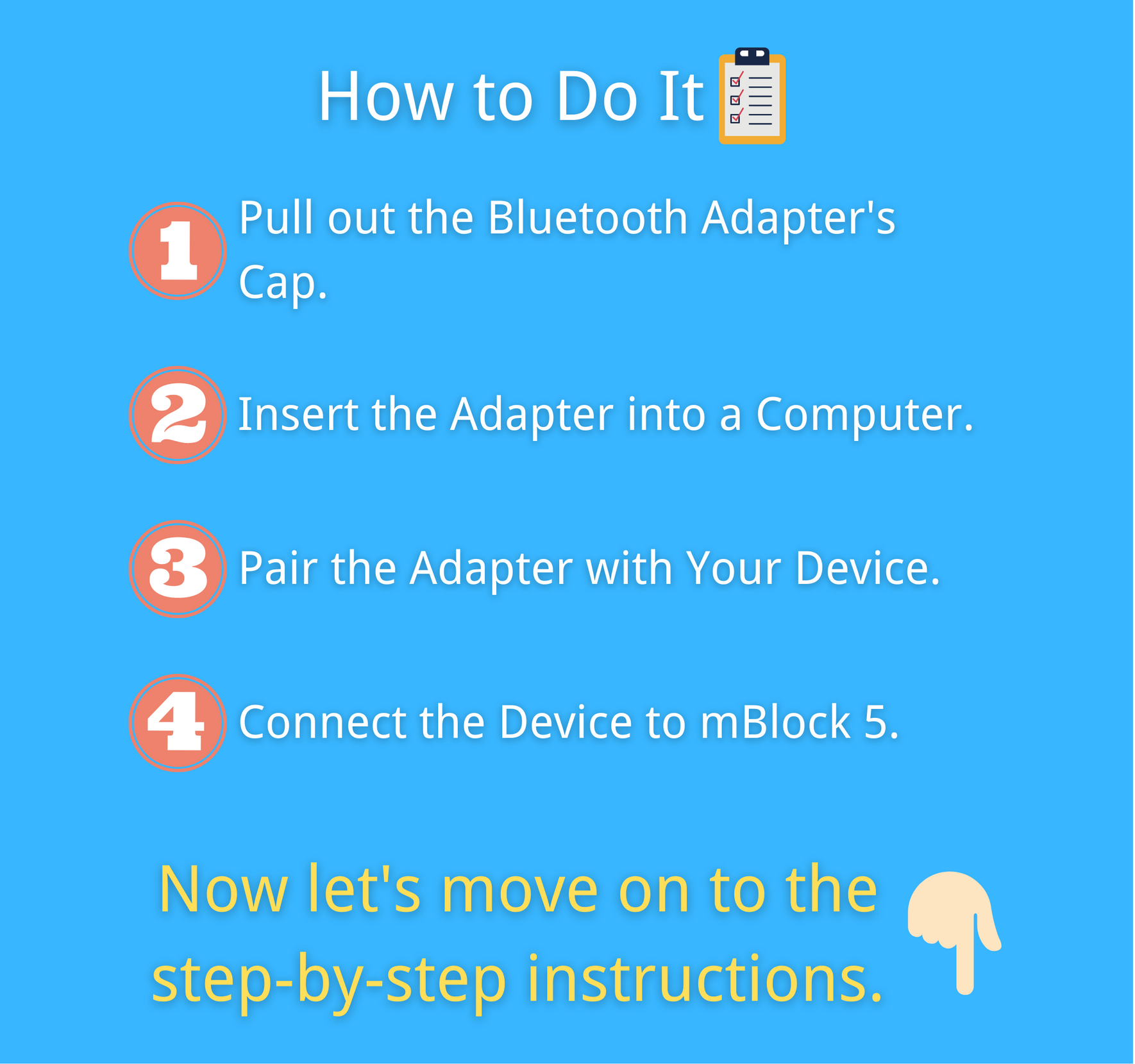

For Bluetooth connection:


For details, please see this guide:



#4 Add the Latest Cyberpi Device Extension

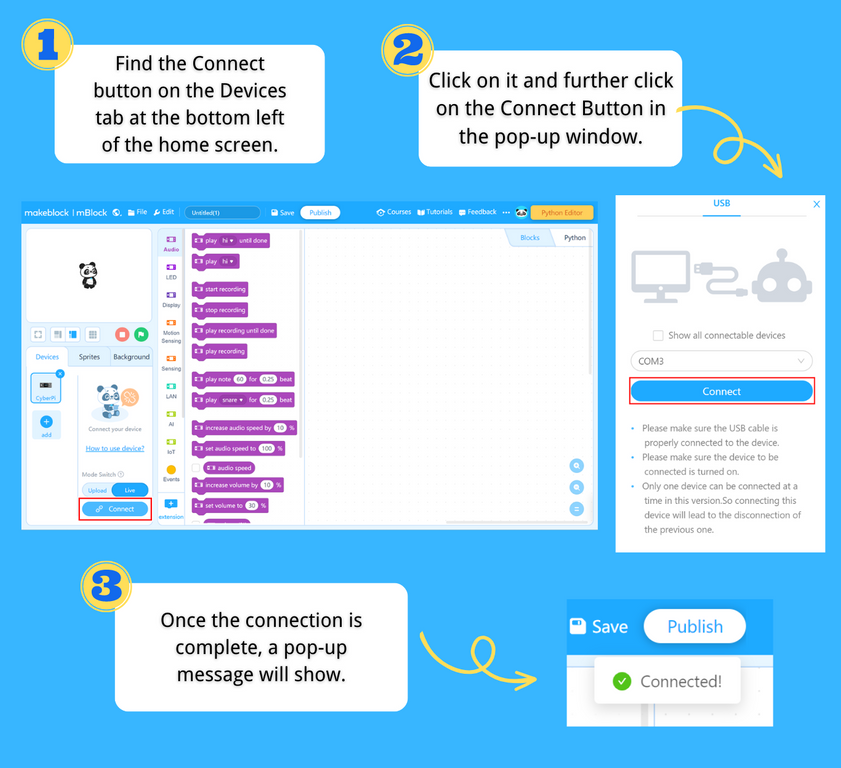

#5 Set the CyberPi Connection in mBlock 5

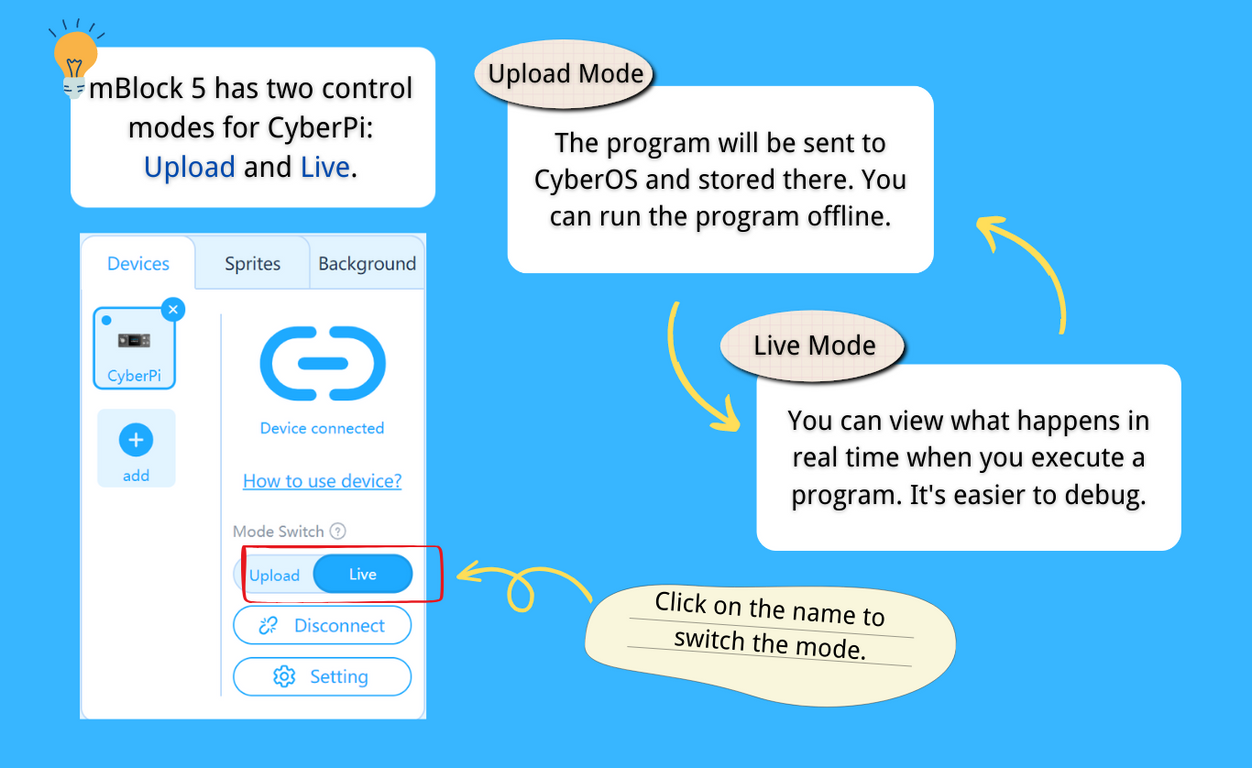

#6 Select the Programming Mode

Got Questions?

Feel free to contact us at:

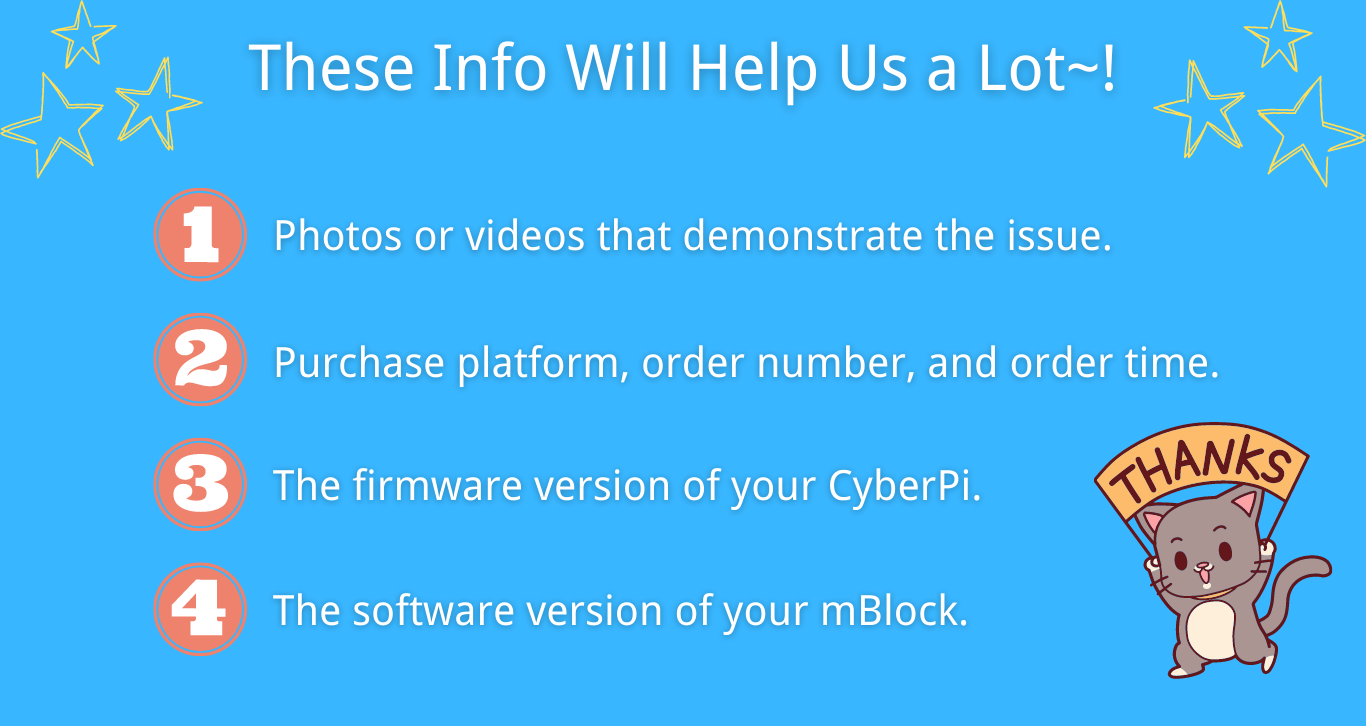

Help Us Solve Faster

We have listed some useful information you can provide to us.

When you contact us, the more information you provide,

the better informed we will be and the quicker we can advise and answer your questions.

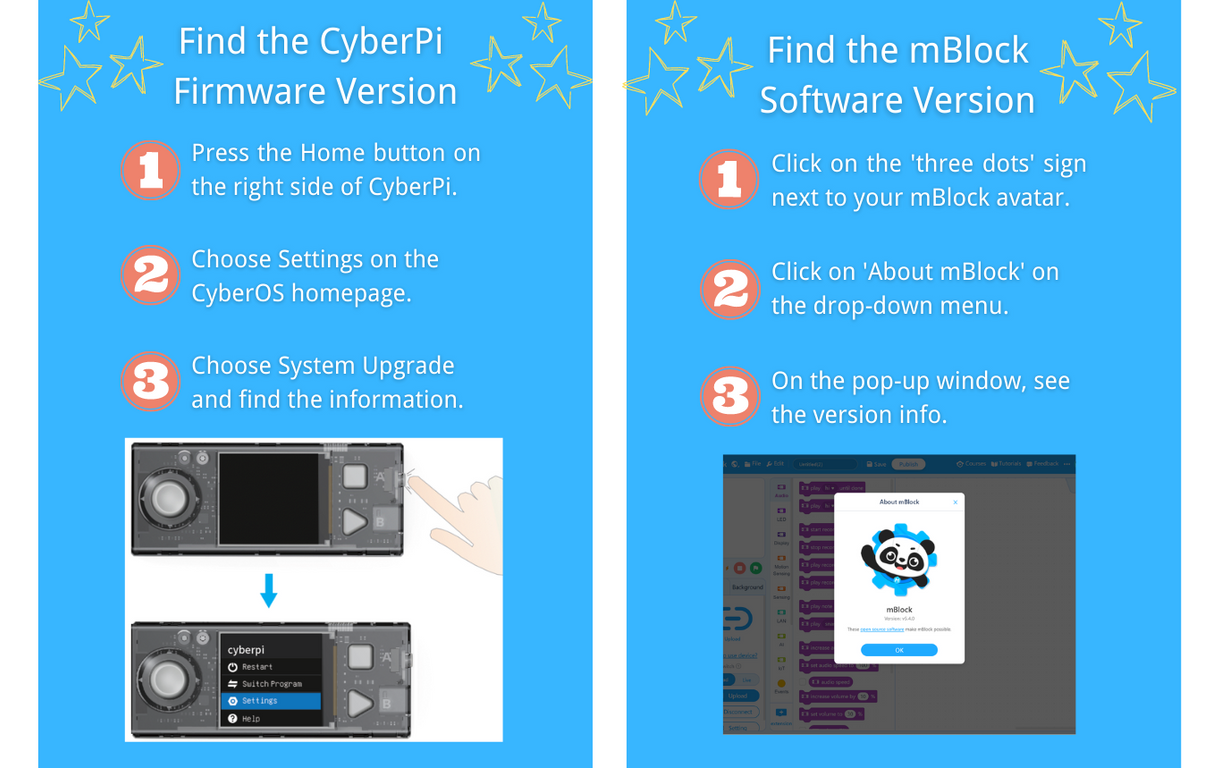

Not Sure Where to Find the Version Info?
