1. How to Connect CyberPi to mBlock 5

This guide applies to:

mBot2, mBot Neo, and CyberPi.



In a Nutshell




Step by Step

#1 Install the Latest mBlock 5

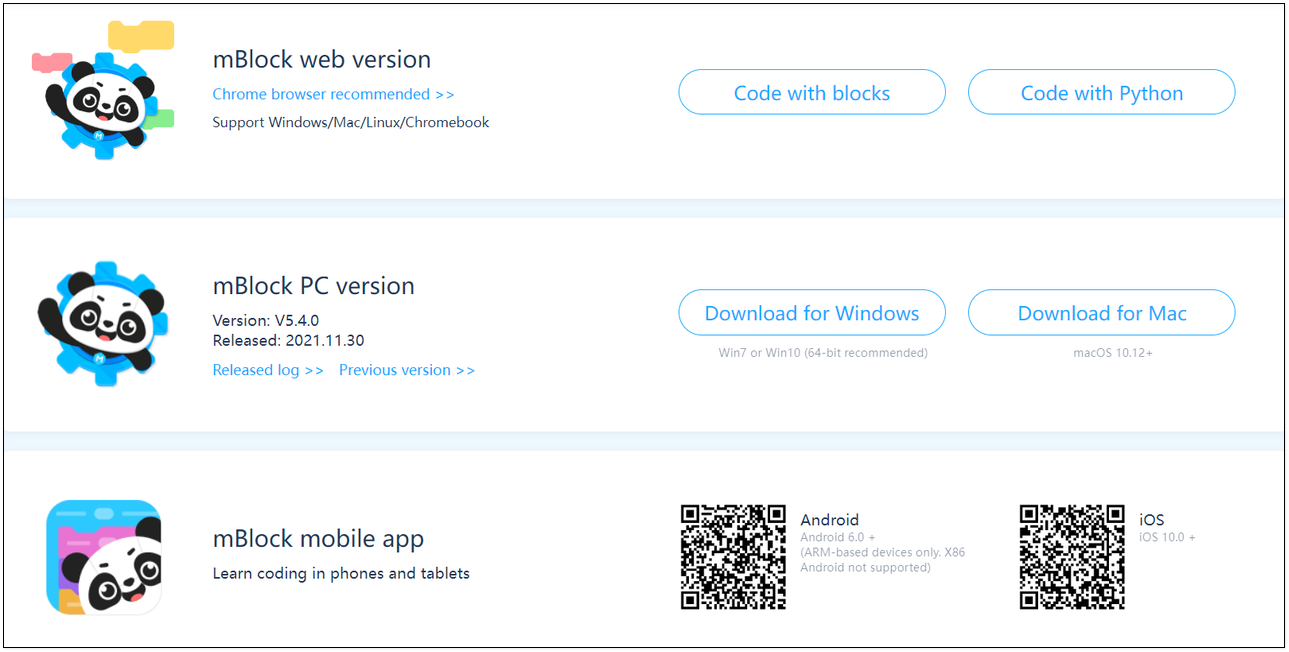

Go to the official download webpage and get the latest mBlock software.

Choose the platform version that suits your device and preference.



#2 Launch the mBlock 5 Software

You will see this home screen.


Note: For some cloud-based features, you'll need to log in to your mBlock account.


#3 Connect mBot2 to Your Computer

You can either connect by a USB-C Cable or by the Bluetooth Adaptor.

For USB connection:

复用图-USB

For Bluetooth connection:


For details, please see this guide:

https://support.makeblock.com/hc/en-us/articles/15848917011863

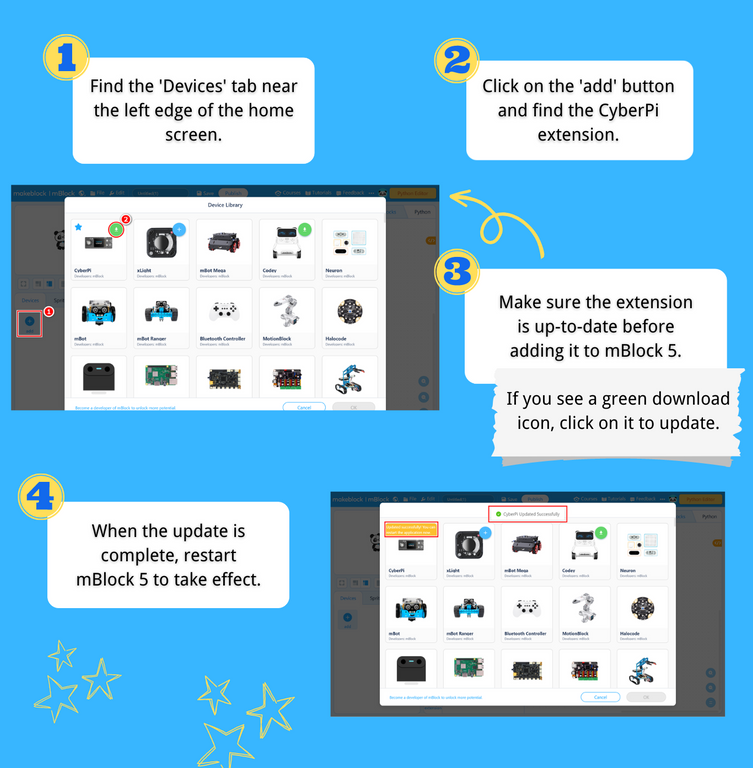

#4 Add the Latest Cyberpi Device Extension

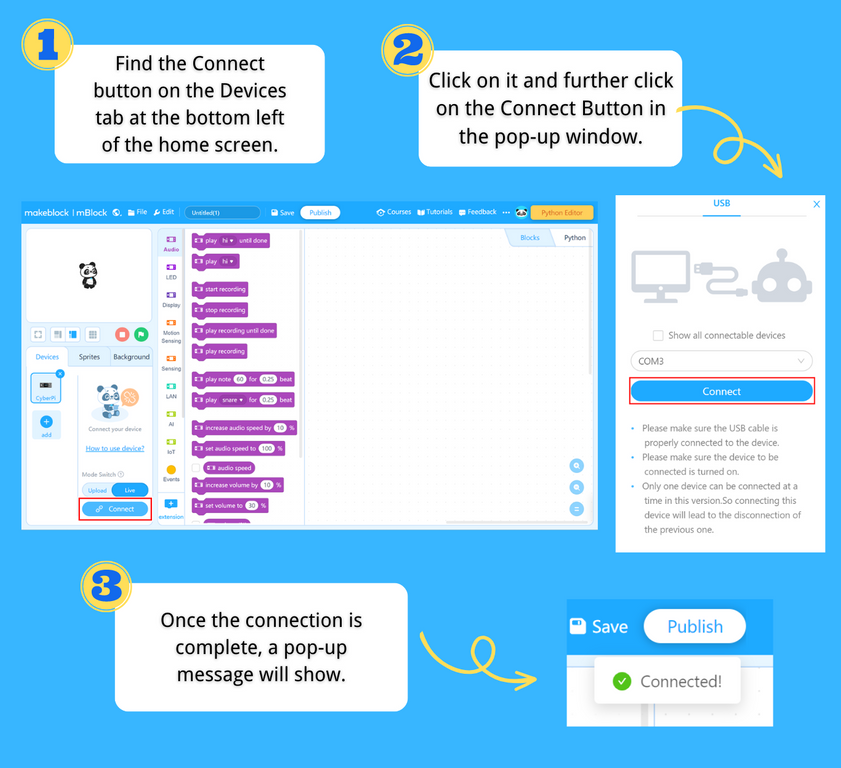

#5 Set the CyberPi Connection in mBlock 5

复用图-连接

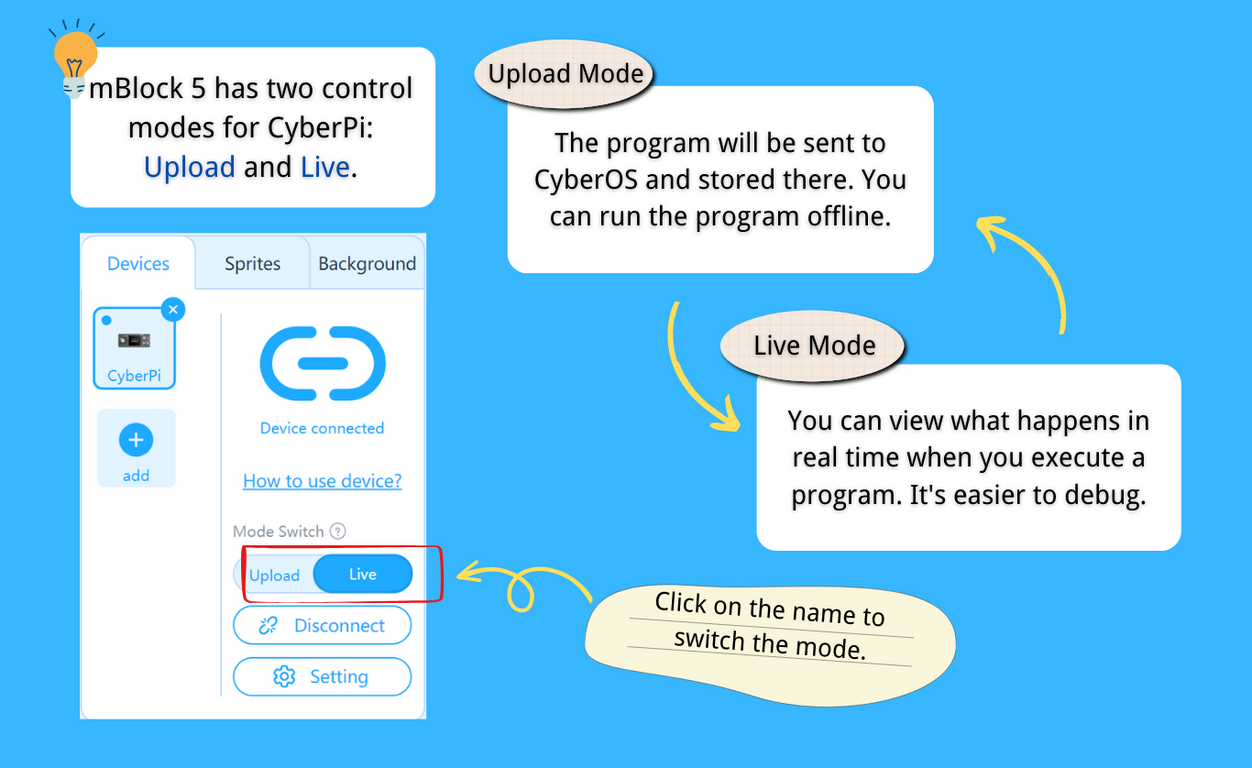

#6 Select the Programming Mode

复用图-在


Got Questions?

Feel free to contact us at:service@makeblock.com


Help Us Solve Faster

We have listed some useful information you can provide to us.

When you contact us, the more information you provide,

the better informed we will be and the quicker we can advise and answer your questions.复用图-联络客服-提供信息.png
