This guide applies to:
mBot2, mBot Neo, and CyberPi.
In a Nutshell
Step by Step
#1 Download and install the Latest mBlock 5
If the firmware is up-to-date, please move on to step #2.

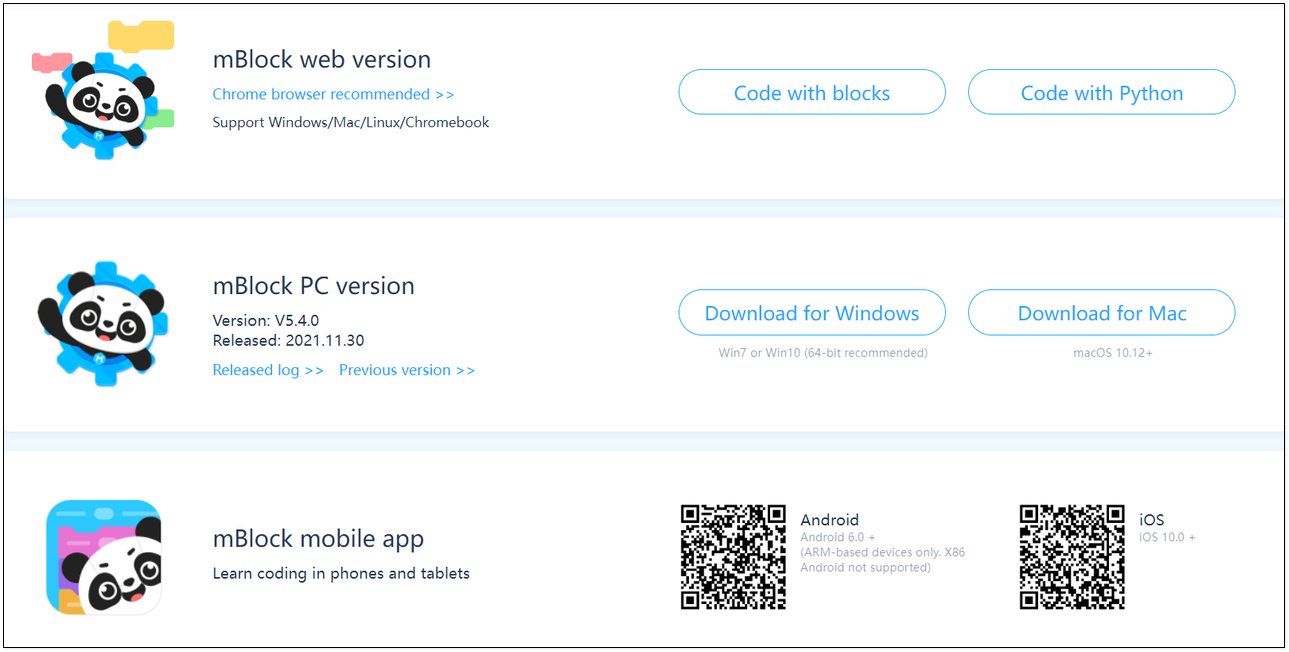

1. Go to the official download webpage and get the latest mBlock 5 software.
2. Download the platform version that suits your device and preference.
#2 Add the Latest CyberPi

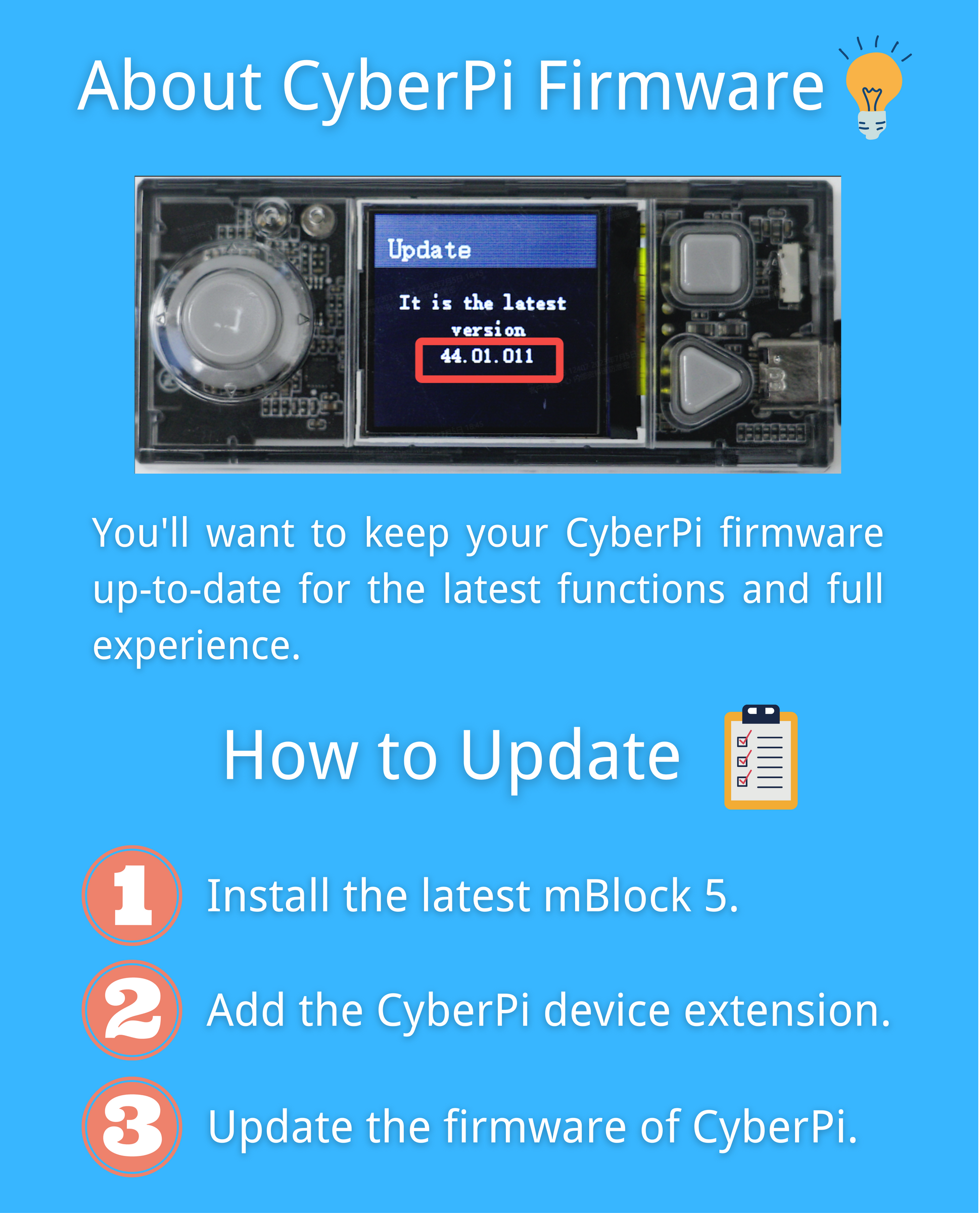

#3 Update the firmware of CyberPi
There are two ways to do so:
A. Update by mBlock 5
Note: If you use mBlock 5 on the web, you need to enable the mLink plugin for your browser.
It is recommended to use the Chrome browser for the complete functions of mBlock 5.

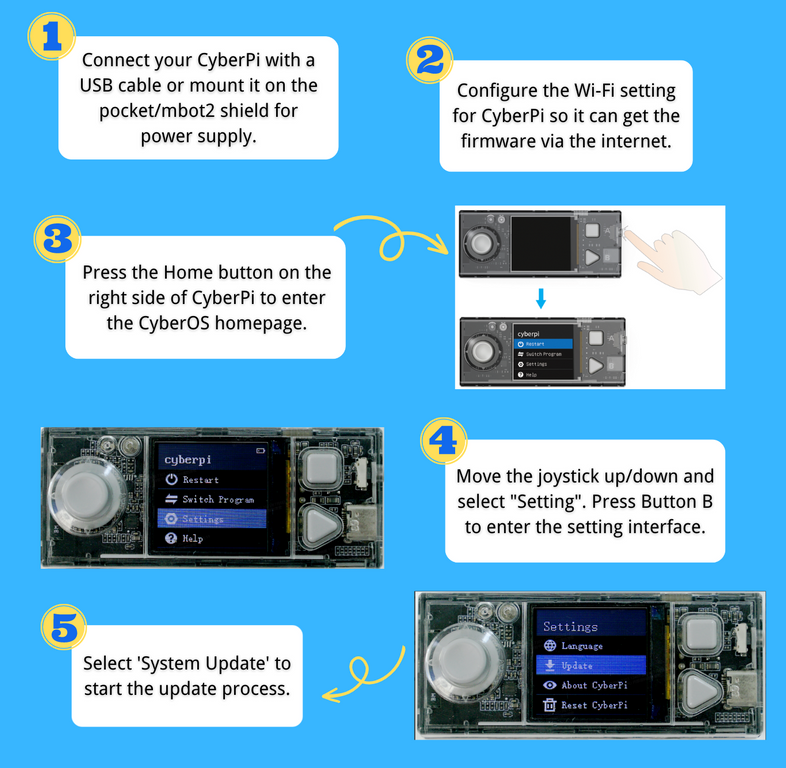

B. Update by CyberPi
Not sure how to configure the Wi-Fi mentioned above? See below:
For details, please see this guide:
Feel free to contact us at:
Help Us Solve Faster
We have listed some useful information you can provide to us.
When you contact us, the more information you provide,
the better informed we will be and the quicker we can advise and answer your questions.

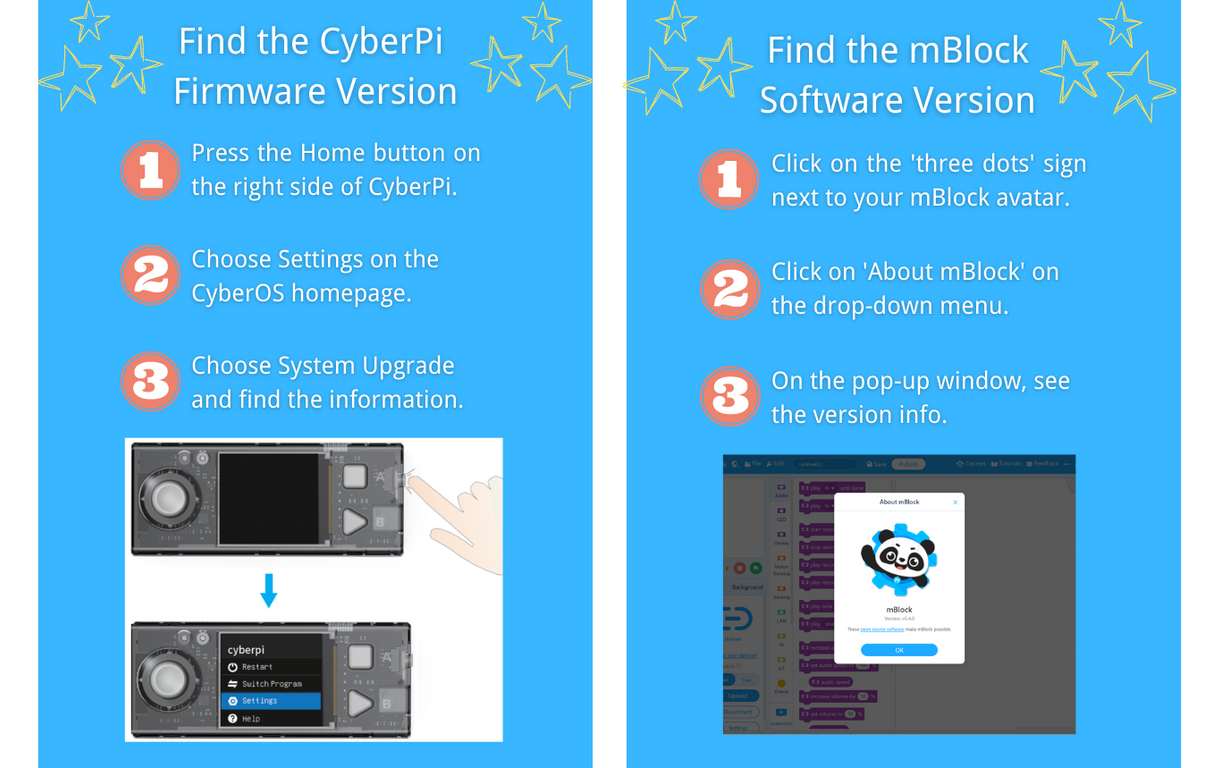

Not Sure Where to Find the Version Info?
