Build mBot Mega


Parts list

  • There are more than 30 parts in an mBot Mega with precise sheet metal processing technology, providing a beautiful and durable structure and making assembly easier.
  • It supports different types of sensors so that it can achieve more functions.



Assembly

Install the motor driver modules


Install the electronic modules onto the body shell


Install the left motor bracket


Install the right motor bracket


Install the line follower sensors


Connect the motor brackets


Install the body shell onto the motor brackets


Install an IR proximity sensor onto the upper shell


Connect all electronic modules to MegaPi

  • 3-pin connection mode provides more freedom. MegaPi is compatible with almost all 3-pin electronic parts, such as sensors, light strips, servos, etc.12_Connect_all_electronic.gif

Connect cables

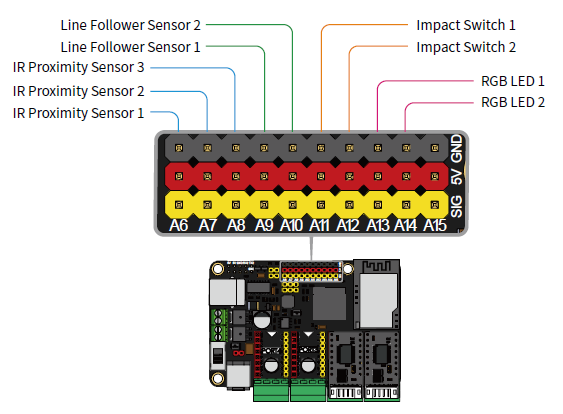

Connection sequence of electronic modules
Positions of electronic modules

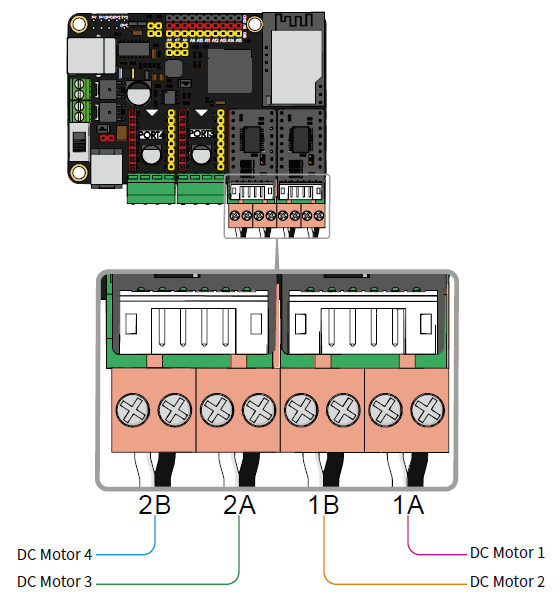

Connect motors

Install the battery holder (hidden installation method)



Tip: If you find it hard to replace the batteries after installing the battery holder in the way as described above, you can install the battery holder in another way, as shown in the following image.


Dimensions: 192 mm x 163 mm x 102 mm
Weight: 0.8 kg (without battery)
