mBot Neo provides eight preset programs, which can be used after you building it.
1. Restart mBot Neo

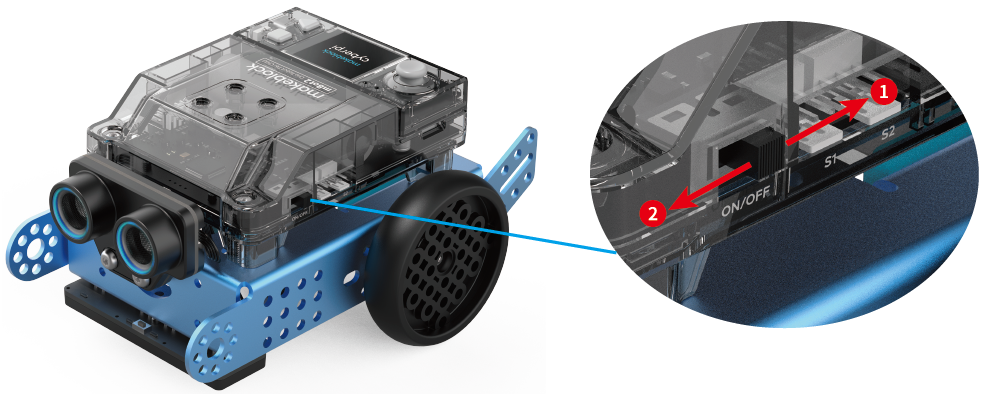

Before running a preset program, turn mBot Neo off and then turn it on to ensure that it is restarted.
2. Enter CyberOS

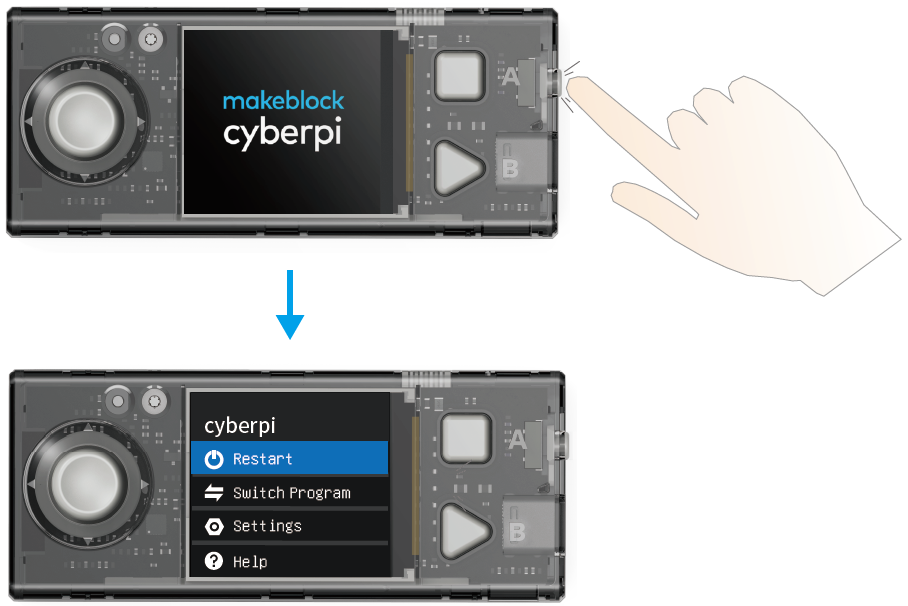

CyberPi automatically enters CyberOS after you restart mBot Neo. If it doesn’t , press the Home button on CyberPi.
3. Choose and execute a program
Take program 1 as an example.

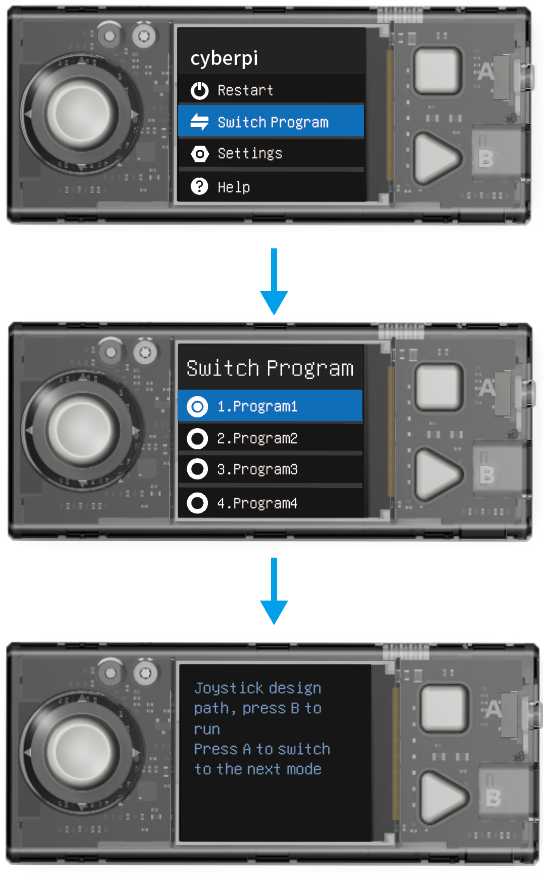

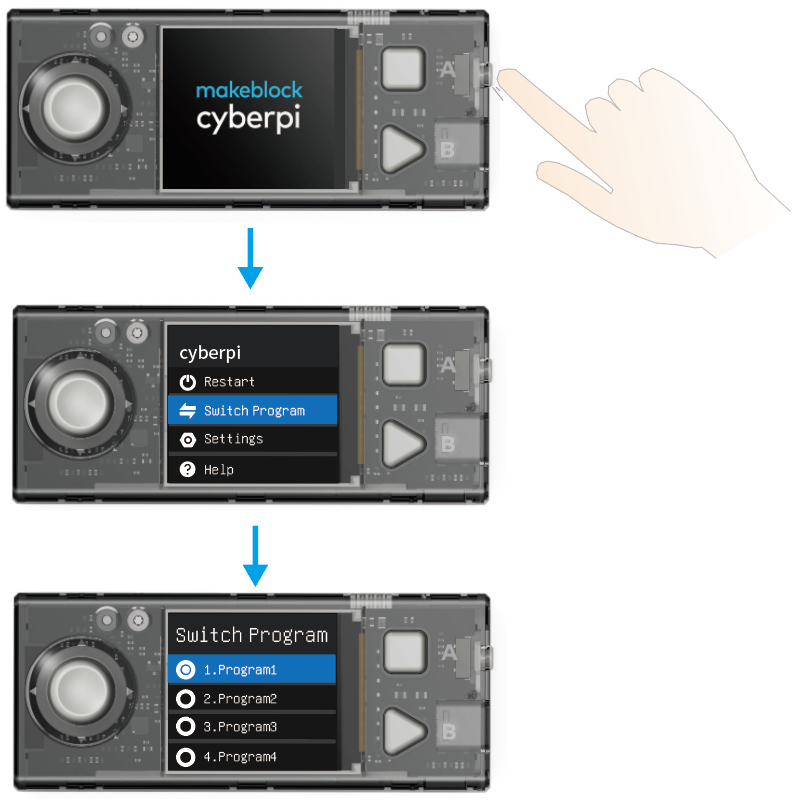

Move the joystick down to choose Switch Program, choose Program1, and press button B to execute the program.
About program 1
Program1 provides three operation modes. The path design mode is the default mode, and you can press button A on CyberPi to switch between them.
① Path design
|② Obstacle avoidance||③ Line following|
Mode 1: Path design
In path design mode, the LEDs on CyberPi are lit up in red, and you can use the joystick to plan the path.

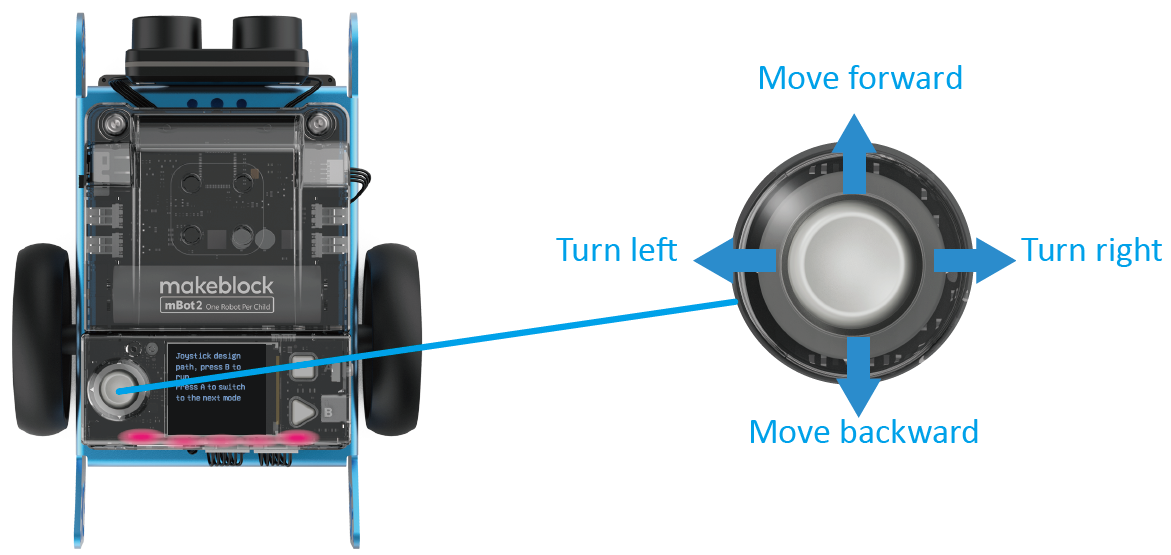

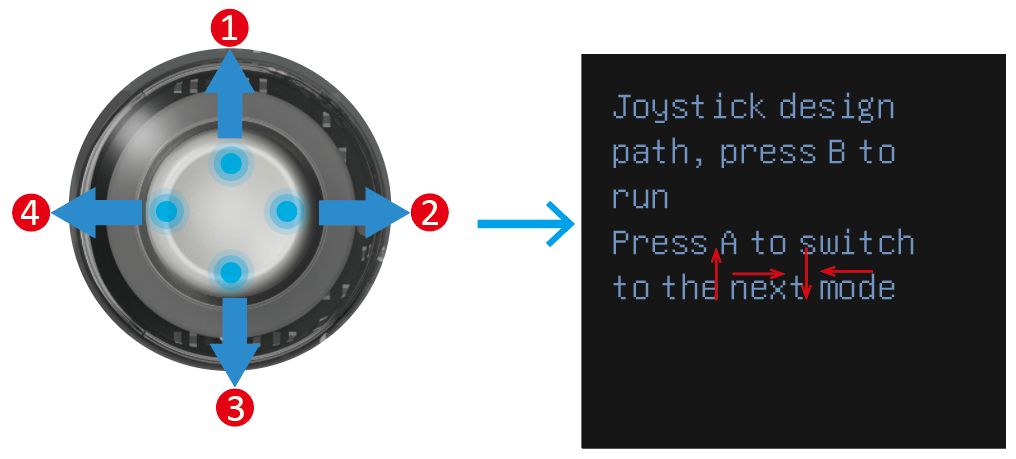

(1) Move the joystick to plan the running path of mBot Neo.

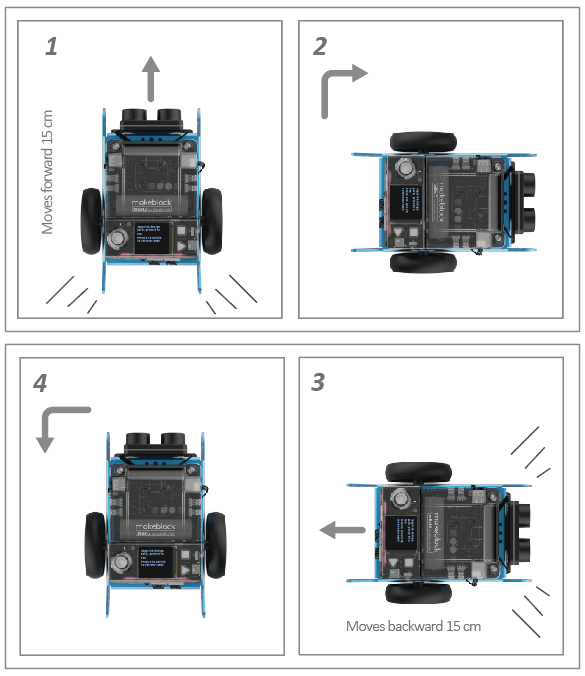

For example, move the joystick up, to the right, down, and then to the left.
The path you have planned is displayed on the screen of CyberPi.
(2) Press button B on CyberPi.
mBot Neo runs in the path you have planned.
Mode 2: Obstacle avoidance

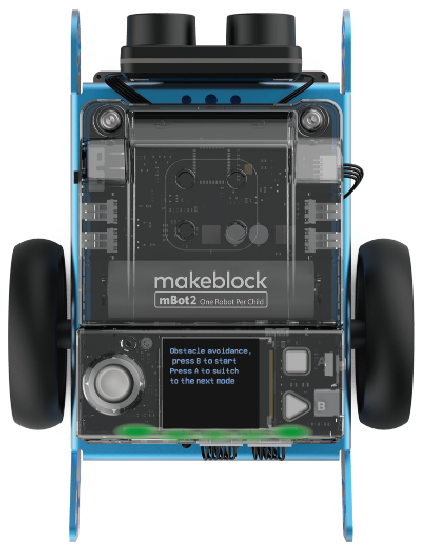

In obstacle avoidance mode, the LEDs on CyberPi are lit up in green.
Press button B on CyberPi.

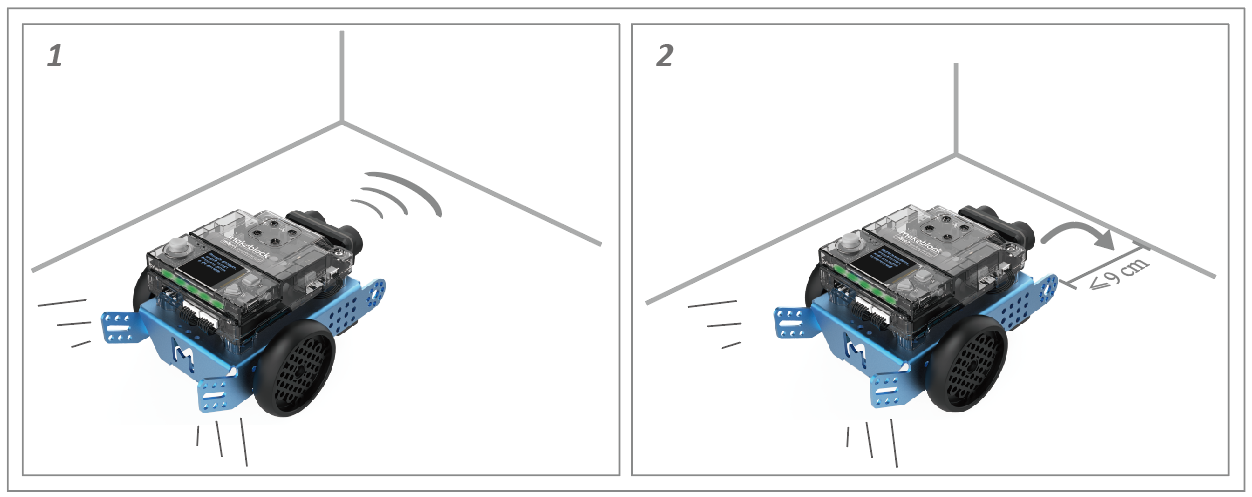

mBot Neo automatically detects obstacles while running. When it detects an obstacle, it turns left or right.
Mode 3: Line following

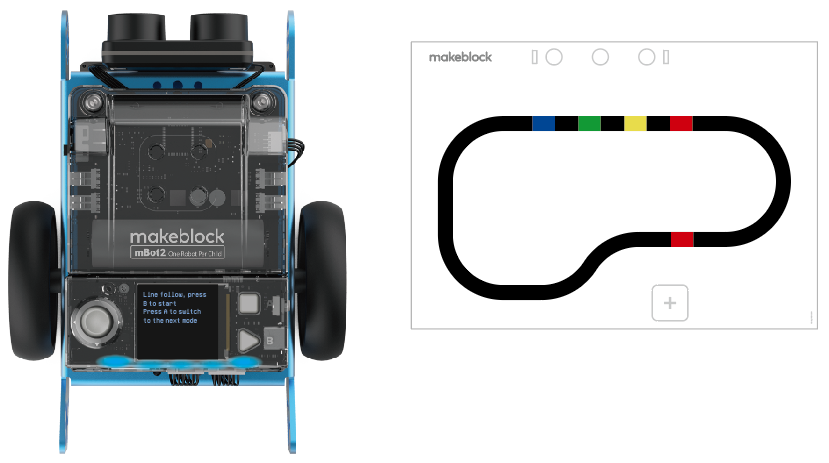

In line following mode, the LEDs on CyberPi are lit up in blue.
In this mode, you need to use the map delivered with mBot Neo.

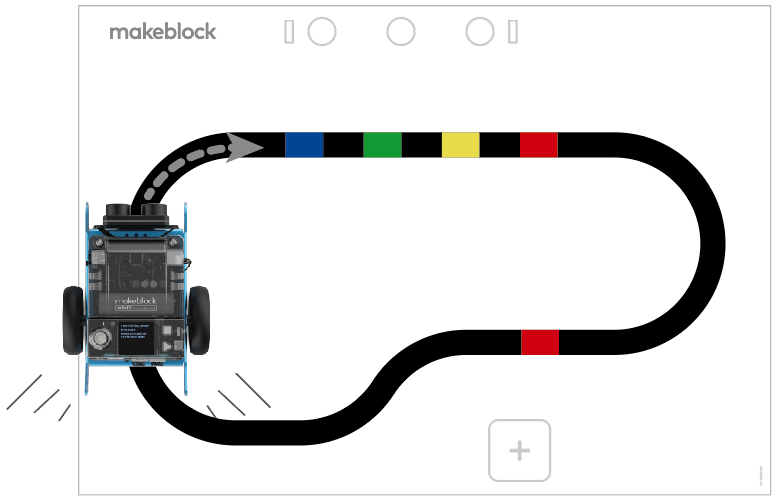

Place mBot Neo on the map and press button B on CyberPi.
mBot Neo automatically follows the black line.
Have more fun with the preset programs
1. Press the Home button to go to the homepage.
