    Case 7 - Control the buttons

    Avatar
    Admin

    Part 1   Objective

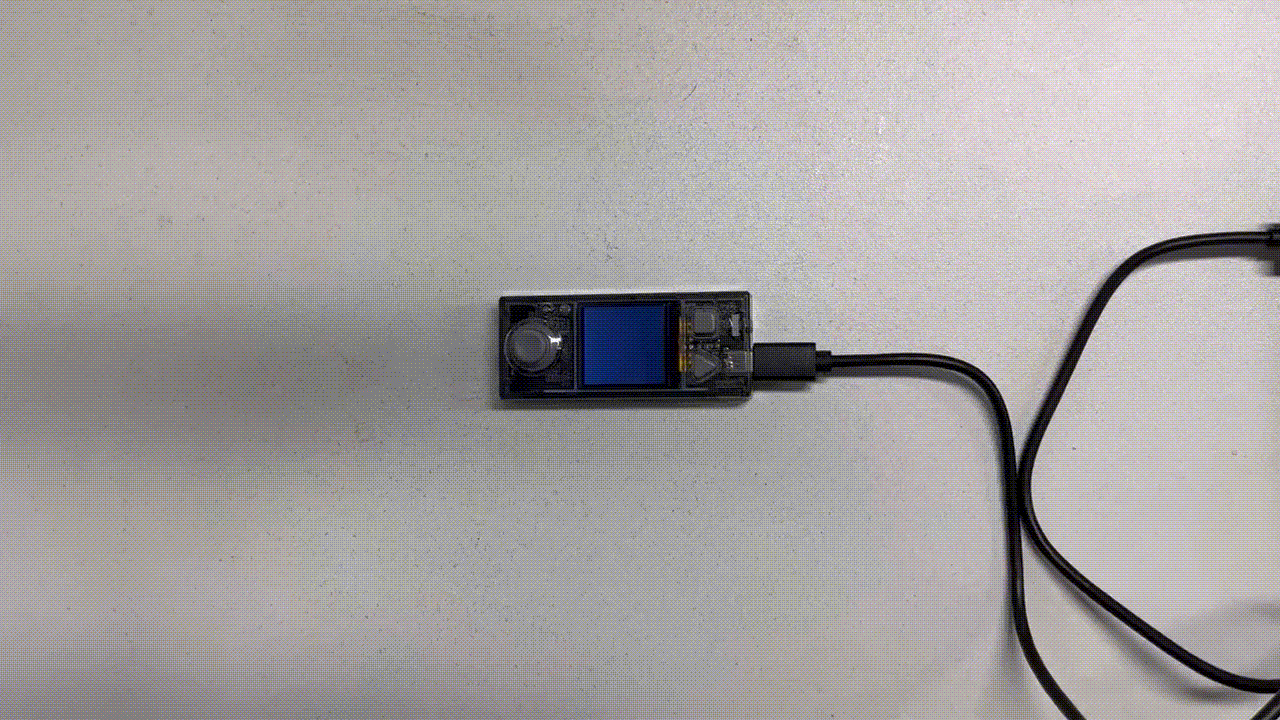

    After you upload the program, you can press button A and button B to control the RGB LEDs on CyberPi.


    Part 2   Preparation

    • CyberPi x 1

    • USB cable (Type-C) x 1

    • Computer with network access x 1

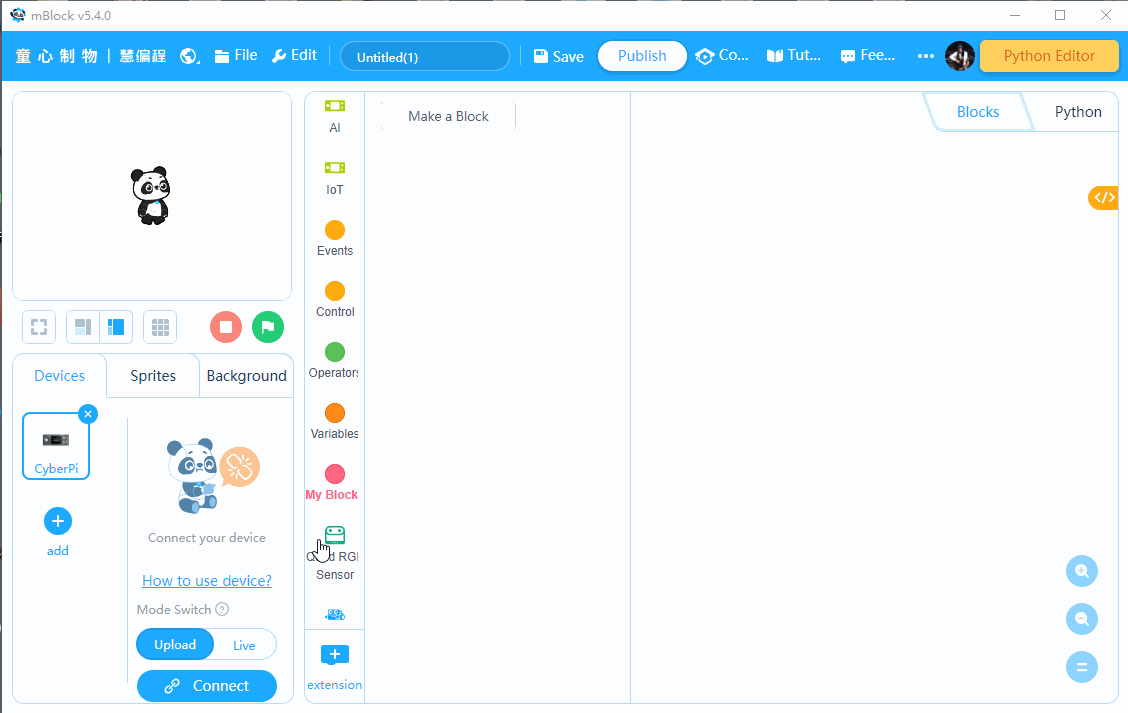

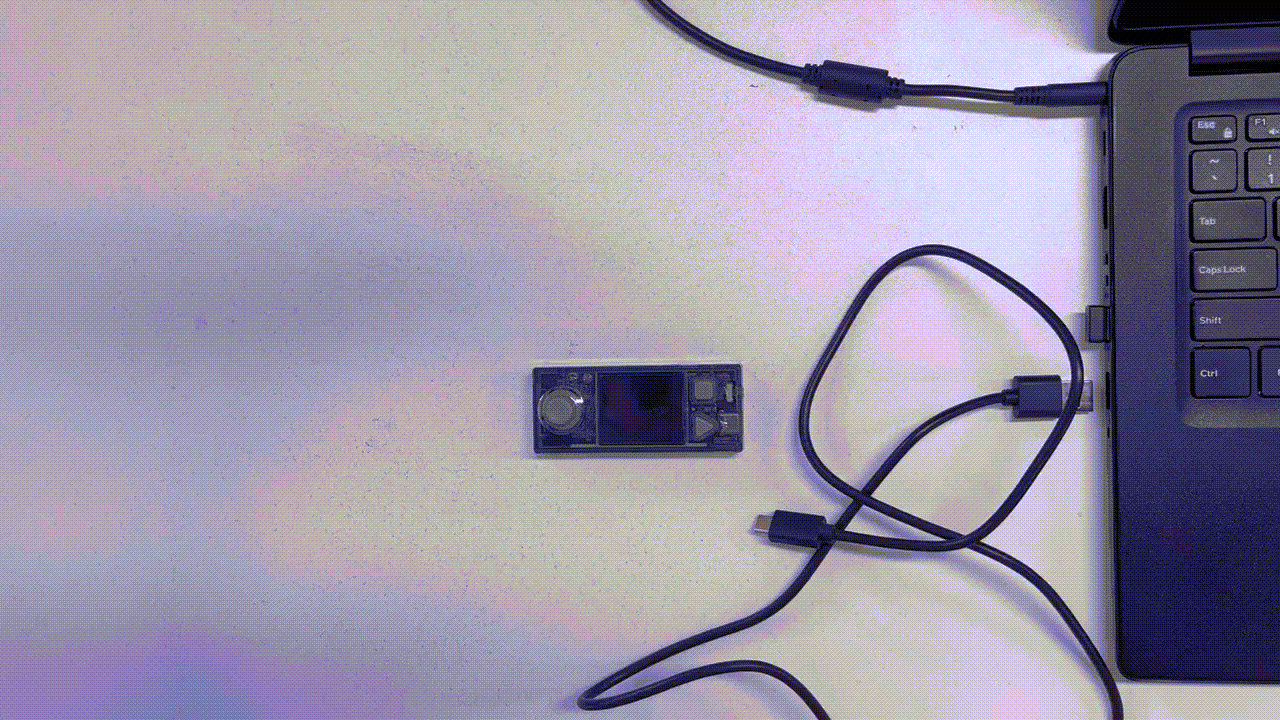

    Connect CyberPi to the computer by using the cable, open mBlock 5 (PC client or web version), connect CyberPi, and select the Upload mode.



    Part 3   Programming

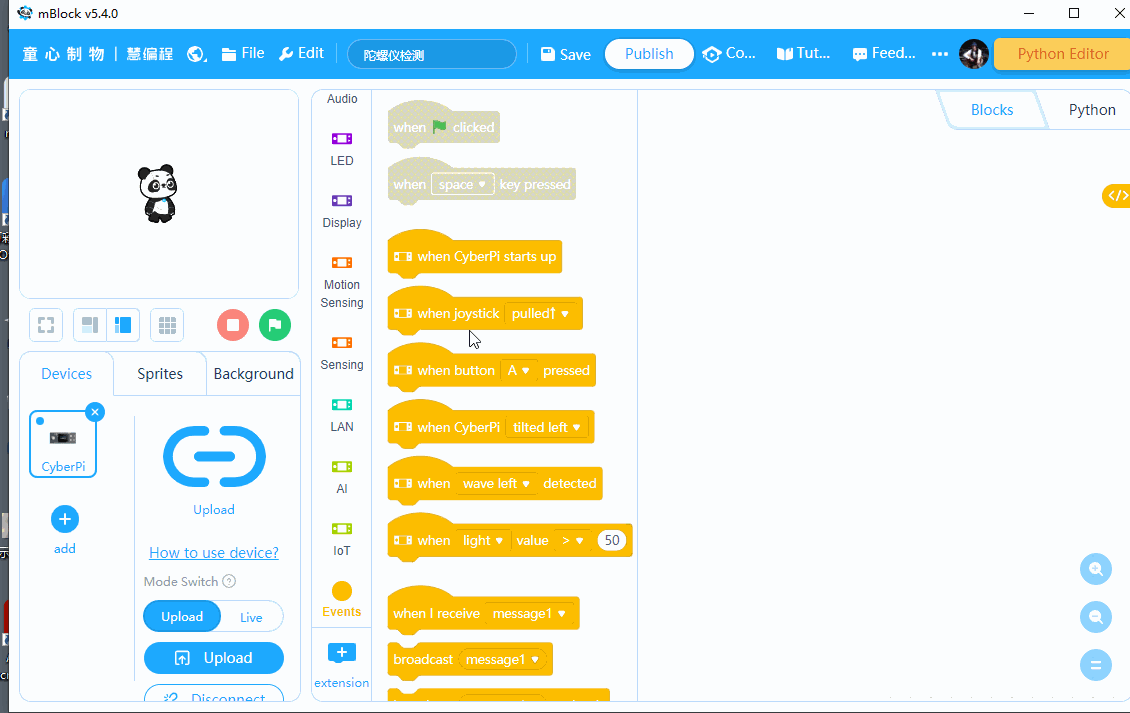

    Press button A to turn on the RGB LEDs, and press button B to turn off the RGB LEDs.


    Part 4   Practice

    Besides the RGB LEDs, what else can you control with the buttons?
